| Part Number | X9313ZMIZ-3T1 | X9313ZMZ-3T1 | X9313ZSIZ-3T1 | X9313UMIZ-3T1 | X9313WMIZ-3T1 | X9313ZMI-3T1 |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Obsolete |
| Taper | Linear | Linear | Linear | Linear | Linear | Linear |
| Configuration | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer | Potentiometer |
| Number of Circuits | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of Taps | 32 | 32 | 32 | 32 | 32 | 32 |
| Resistance (Ohms) | 1K | 1K | 1K | 50k | 10k | 1K |
| Interface | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) | Up/Down (U/D, INC, CS) |
| Memory Type | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile | Non-Volatile |
| Voltage - Supply | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V | 3V ~ 5.5V |
| Features | - | - | - | - | - | - |
| Tolerance | ±20% | ±20% | ±20% | ±20% | ±20% | ±20% |
| Temperature Coefficient (Typ) | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C | ±300ppm/°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

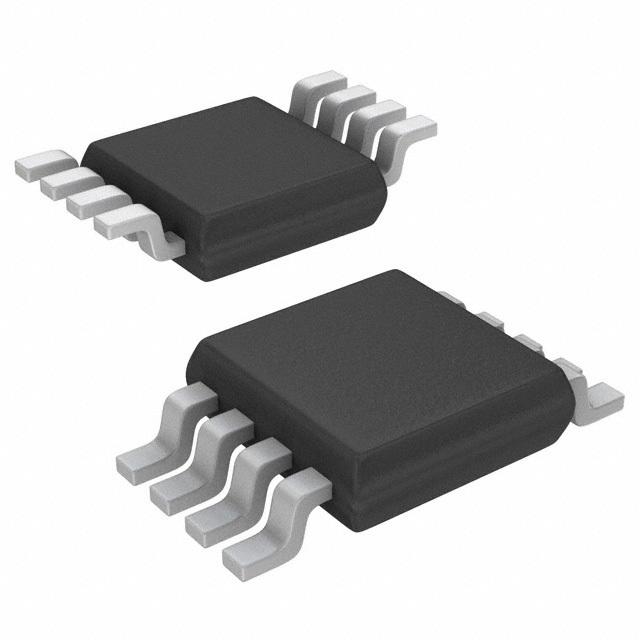

| Supplier Device Package | 8-MSOP | 8-MSOP | 8-SOIC | 8-MSOP | 8-MSOP | 8-MSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| Operating Temperature | -40°C ~ 85°C | 0°C ~ 70°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Resistance - Wiper (Ohms) (Typ) | 40 | 40 | 40 | 40 | 40 | 40 |
