Please send RFQ , we will respond immediately.

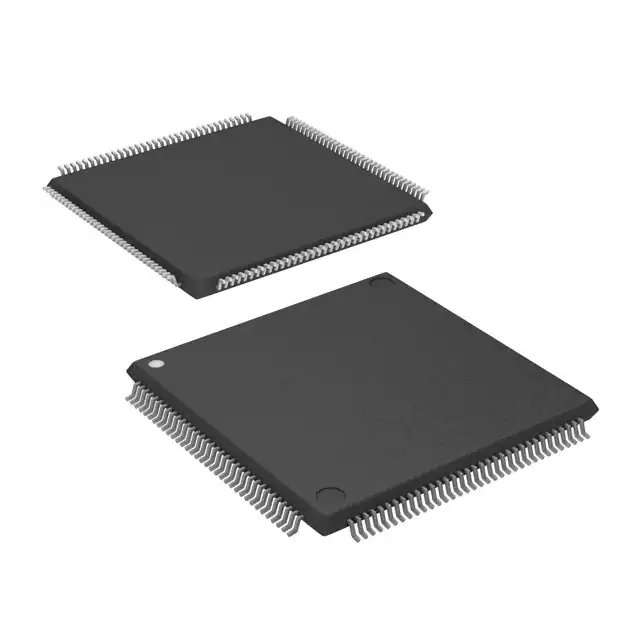

| Part Number | UPD78F1186AGJ-GAE-AX | UPD78F1187AGJ-GAE-AX | UPD78F1188AGJ-GAE-AX | UPD78F1184AGJ-GAE-AX | UPD78F1185AGJ-GAE-AX |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Not For New Designs | Active | Active | Active | Active |
| Core Processor | 78K/0R | 78K/0R | 78K/0R | 78K/0R | 78K/0R |
| Core Size | 16-Bit | 16-Bit | 16-Bit | 16-Bit | 16-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | 3-Wire SIO, EBI/EMI, I²C, LINbus, UART/USART | 3-Wire SIO, EBI/EMI, I²C, LINbus, UART/USART | 3-Wire SIO, EBI/EMI, I²C, LINbus, UART/USART | 3-Wire SIO, EBI/EMI, I²C, LINbus, UART/USART | 3-Wire SIO, EBI/EMI, I²C, LINbus, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 127 | 127 | 127 | 127 | 127 |
| Program Memory Size | 256KB (256K x 8) | 384KB (384K x 8) | 512KB (512K x 8) | 128KB (128K x 8) | 192KB (192K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - |
| RAM Size | 12K x 8 | 24K x 8 | 30K x 8 | 8K x 8 | 10K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b | A/D 16x10b; D/A 2x8b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP | 144-LQFP |
| Supplier Device Package | - | - | - | - | - |
