| Part Number | UPD78F0561MC-CAA-AX | UPD78F0567MC-CAA-AX | UPD78F0562MC-CAA-AX | UPD78F0565MC-CAA-AX | UPD78F0566MC-CAA-AX | UPD78F0560MC-CAA-AX |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Not For New Designs | Active | Active | Active | Active |
| Core Processor | 78K/0 | 78K/0 | 78K/0 | 78K/0 | 78K/0 | 78K/0 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 10MHz | 10MHz | 10MHz | 10MHz | 10MHz | 10MHz |
| Connectivity | I²C, LINbus, UART/USART | I²C, LINbus, UART/USART | I²C, LINbus, UART/USART | I²C, LINbus, UART/USART | I²C, LINbus, UART/USART | I²C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 13 | 13 | 13 | 13 | 13 | 13 |
| Program Memory Size | 8KB (8K x 8) | 16KB (16K x 8) | 16KB (16K x 8) | 4KB (4K x 8) | 8KB (8K x 8) | 4KB (4K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - |
| RAM Size | 512 x 8 | 768 x 8 | 768 x 8 | 384 x 8 | 512 x 8 | 384 x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 6x10b | A/D 6x10b | A/D 6x10b | A/D 6x10b | A/D 6x10b | A/D 6x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

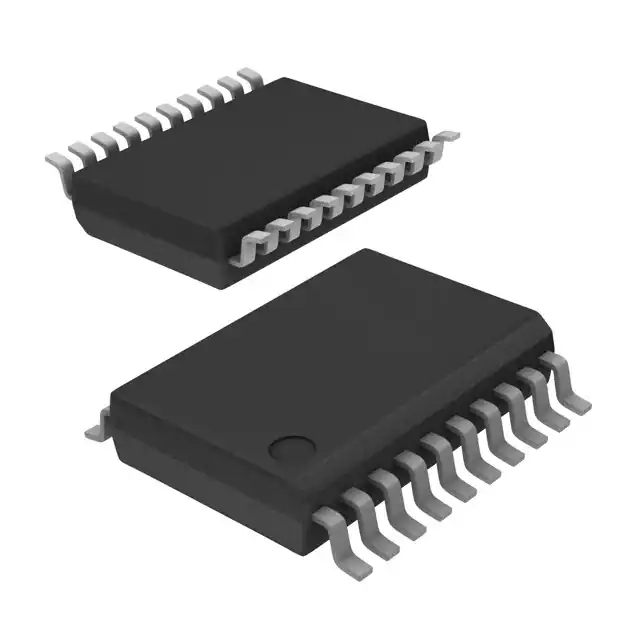

| Package / Case | 20-LSSOP (0.240", 6.10mm Width) | 20-LSSOP (0.240", 6.10mm Width) | 20-LSSOP (0.240", 6.10mm Width) | 20-LSSOP (0.240", 6.10mm Width) | 20-SSOP (0.209", 5.30mm Width) | 20-LSSOP (0.240", 6.10mm Width) |
| Supplier Device Package | - | - | - | - | - | - |
