Please send RFQ , we will respond immediately.

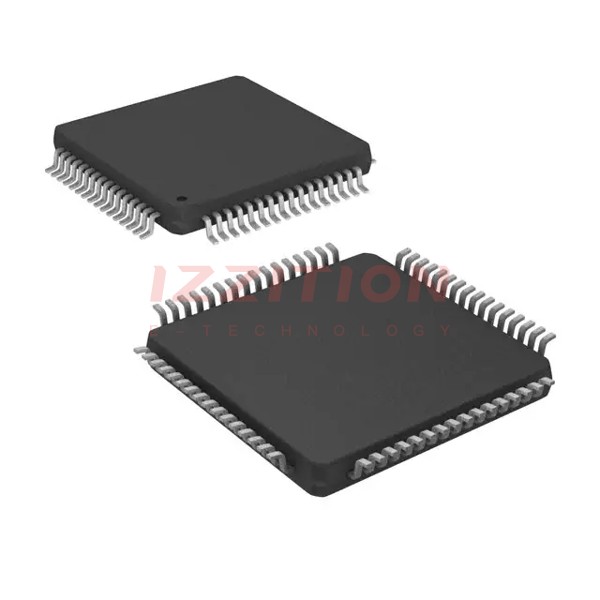

| Part Number | UPD78F0536AGA-HAB-AX | UPD78F0537AGA-HAB-AX | UPD78F0531AGA-HAB-AX | UPD78F0532AGA-HAB-AX | UPD78F0533AGA-HAB-AX | UPD78F0534AGA-HAB-AX | UPD78F0535AGA-HAB-AX |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active | Active | Active |
| Core Processor | 78K/0 | 78K/0 | 78K/0 | 78K/0 | 78K/0 | 78K/0 | 78K/0 |
| Core Size | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit | 8-Bit |
| Speed | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz | 20MHz |
| Connectivity | 3-Wire SIO, I²C, LINbus, UART/USART | 3-Wire SIO, I²C, LINbus, UART/USART | 3-Wire SIO, I²C, LINbus, UART/USART | 3-Wire SIO, I²C, LINbus, UART/USART | 3-Wire SIO, I²C, LINbus, UART/USART | 3-Wire SIO, I²C, LINbus, UART/USART | 3-Wire SIO, I²C, LINbus, UART/USART |
| Peripherals | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT | LVD, POR, PWM, WDT |
| Number of I/O | 55 | 55 | 55 | 55 | 55 | 55 | 55 |
| Program Memory Size | 96KB (96K x 8) | 128KB (128K x 8) | 16KB (16K x 8) | 24KB (24K x 8) | 32KB (32K x 8) | 48KB (48K x 8) | 60KB (60K x 8) |
| Program Memory Type | Flash | Flash | Flash | Flash | Flash | Flash | Flash |
| EEPROM Size | - | - | - | - | - | - | - |
| RAM Size | 5K x 8 | 7K x 8 | 768 x 8 | 1K x 8 | 1K x 8 | 2K x 8 | 3K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Data Converters | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b | A/D 8x10b |
| Oscillator Type | Internal | Internal | Internal | Internal | Internal | Internal | Internal |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | 64-TQFP | 64-TQFP | 64-TQFP | 64-TQFP | 64-TQFP | 64-TQFP | 64-TQFP |
| Supplier Device Package | - | - | - | - | - | - | - |
