| Part Number | UPA650TT-E1-A | UPA652TT-E1-A | UPA654TT-E1-A | UPA651TT-E1-A | UPA653TT-E1-A | UPA620TT-E1-A |
|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V | 20 V | 12 V | 20 V | 30 V | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) | 2A (Ta) | - | 5A (Ta) | 2.5A (Ta) | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - | - | - | - |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 2.5A, 4.5V | 294mOhm @ 1A, 4.5V | 88mOhm @ 1.5A, 4.5V | 69mOhm @ 2.5A, 4.5V | 165mOhm @ 1.5A, 10V | 38mOhm @ 2.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA | 1.5V @ 250µA | 1.5V @ 1mA | 1.5V @ 1mA | 2.5V @ 1mA | 1.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 5.5 nC @ 10 V | 1.1 nC @ 4 V | 2.7 nC @ 4 V | 5.5 nC @ 4 V | 3.4 nC @ 10 V | 5.5 nC @ 4 V |
| Vgs (Max) | - | - | - | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 610 pF @ 10 V | 126 pF @ 10 V | 250 pF @ 10 V | 600 pF @ 10 V | 175 pF @ 10 V | 450 pF @ 10 V |
| FET Feature | - | - | - | - | - | - |
| Power Dissipation (Max) | 200mW (Ta) | - | - | 200mW (Ta) | - | - |
| Operating Temperature | 150°C (TJ) | - | - | 150°C (TJ) | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

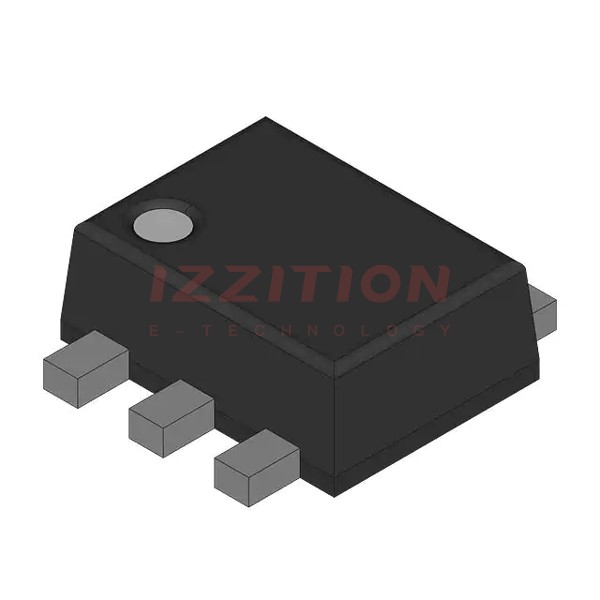

| Supplier Device Package | 6-WSOF | 6-WSOF | 6-WSOF | 6-WSOF | 6-WSOF | 6-WSOF |
| Package / Case | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads | 6-SMD, Flat Leads |
