| Part Number | UPA610TA-T1-A | UPA611TA-T1-A |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 30V | 30V |
| Current - Continuous Drain (Id) @ 25°C | 100mA | 100mA |
| Rds On (Max) @ Id, Vgs | 13Ohm @ 10mA, 10V | 5Ohm @ 10mA, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 5pF @ 3V | 9pF @ 3V |
| Power - Max | 300mW | 300mW |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

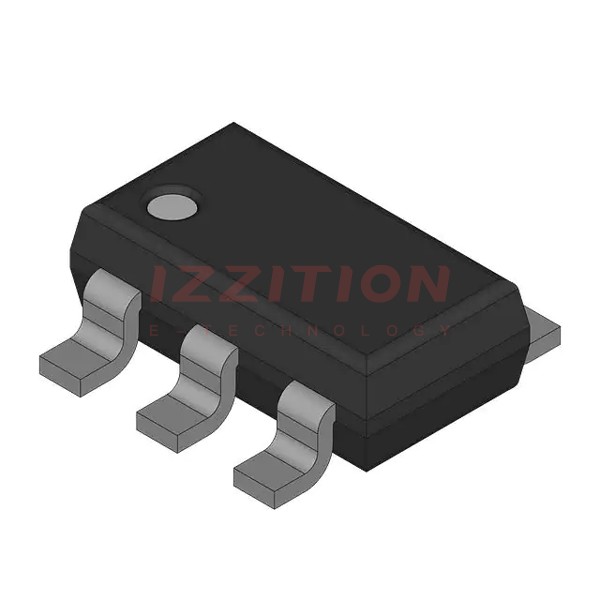

| Package / Case | SC-74, SOT-457 | SC-74, SOT-457 |
| Supplier Device Package | SC-74-6, (Mini Mold) | SC-74-6, (Mini Mold) |
