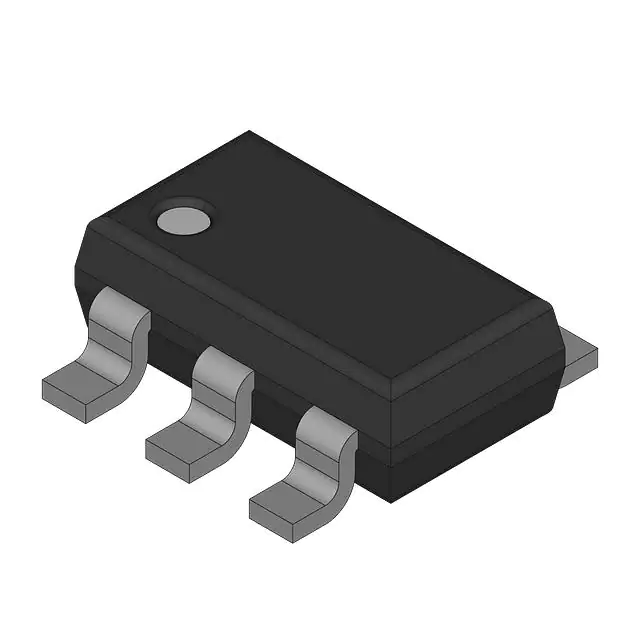

| Part Number | UPA603T-T2-A | UPA503T-T2-A | UPA602T-T2-A |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Standard | Standard | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 50V | 50V | 50V |
| Current - Continuous Drain (Id) @ 25°C | 100mA | 100mA | 100mA |
| Rds On (Max) @ Id, Vgs | 60Ohm @ 10mA, 10V | 60Ohm @ 10mA, 10V | 25Ohm @ 10mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1µA | 2.5V @ 1µA | 1.8V @ 1µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 17pF @ 5V | 17pF @ 5V | 16pF @ 5V |
| Power - Max | 300mW | 300mW | 300mW |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-59-6 | TO-236-3, SC-59, SOT-23-3 | SC-59-6 |
| Supplier Device Package | SC-59 | SC-59-5, Mini Mold | SC-59 |
