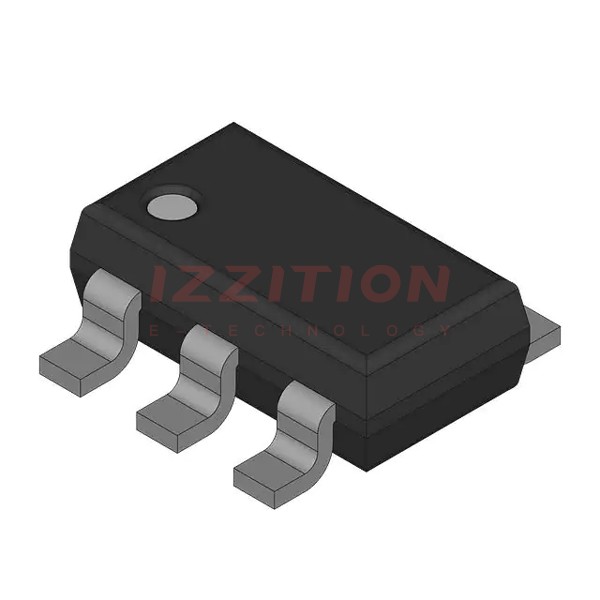

| Part Number | UPA602T-T1-A | UPA602T-T2-A | UPA606T-T1-A | UPA672T-T1-A |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) | 2 N-Channel (Dual) |
| FET Feature | Logic Level Gate | Logic Level Gate | Logic Level Gate | Logic Level Gate |
| Drain to Source Voltage (Vdss) | 50V | 50V | 50V | 50V |
| Current - Continuous Drain (Id) @ 25°C | 100mA | 100mA | 100mA | 100mA |
| Rds On (Max) @ Id, Vgs | 25Ohm @ 10mA, 10V | 25Ohm @ 10mA, 10V | 25Ohm @ 10mA, 10V | 20Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 1.8V @ 1µA | 1.8V @ 1µA | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 16pF @ 5V | 16pF @ 5V | 16pF @ 5V | 6pF @ 3V |
| Power - Max | 300mW | 300mW | 300mW | 200mW |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-59-6 | SC-59-6 | SOT-23-6 | 6-TSSOP, SC-88, SOT-363 |
| Supplier Device Package | SC-59 | SC-59 | 6-Minimold | 6-SuperMiniMold |
