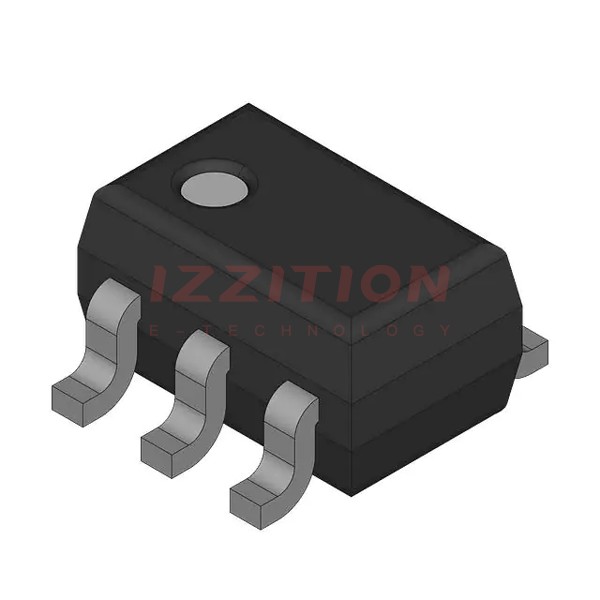

| Part Number | UPA573T-T1-A | UPA503T-T1-A |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| FET Type | 2 P-Channel (Dual) | 2 P-Channel (Dual) |
| FET Feature | Standard | Standard |
| Drain to Source Voltage (Vdss) | 30V | 50V |
| Current - Continuous Drain (Id) @ 25°C | 100mA | 100mA |
| Rds On (Max) @ Id, Vgs | 25Ohm @ 10mA, 4V | 60Ohm @ 10mA, 10V |
| Vgs(th) (Max) @ Id | 2.3V @ 10µA | 2.5V @ 1µA |
| Gate Charge (Qg) (Max) @ Vgs | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 16pF @ 5V | 17pF @ 5V |
| Power - Max | 200mW | 300mW |
| Operating Temperature | - | - |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package | SC-70-5 | SC-59-5, Mini Mold |
