| Part Number | UPA2825T1S-E2-AT | UPA2815T1S-E2-AT | UPA2820T1S-E2-AT |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete |
| FET Type | N-Channel | P-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 24A (Tc) | 21A (Tc) | 22A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.6mOhm @ 24A, 10V | 11mOhm @ 21A, 10V | 5.3mOhm @ 22A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 57 nC @ 10 V | 47 nC @ 10 V | 50 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2600 pF @ 10 V | 1760 pF @ 10 V | 2330 pF @ 10 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1.5W (Ta), 16.5W (Tc) | 1.5W (Ta) | 1.5W (Ta), 16W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

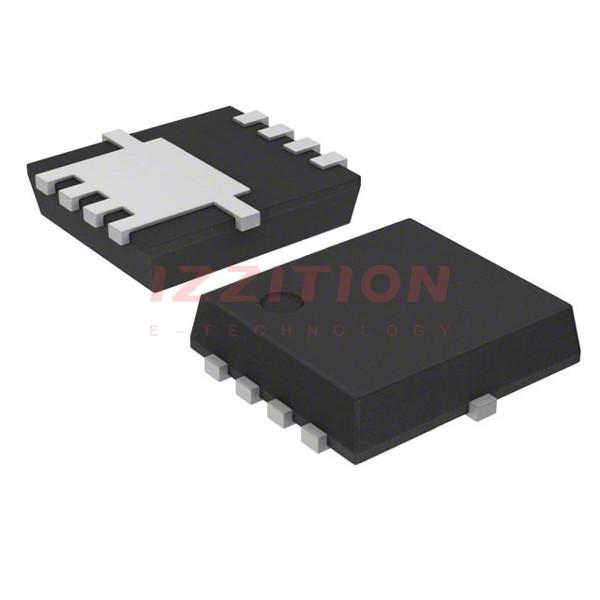

| Supplier Device Package | 8-HWSON (3.3x3.3) | 8-HWSON (3.3x3.3) | 8-HWSON (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
