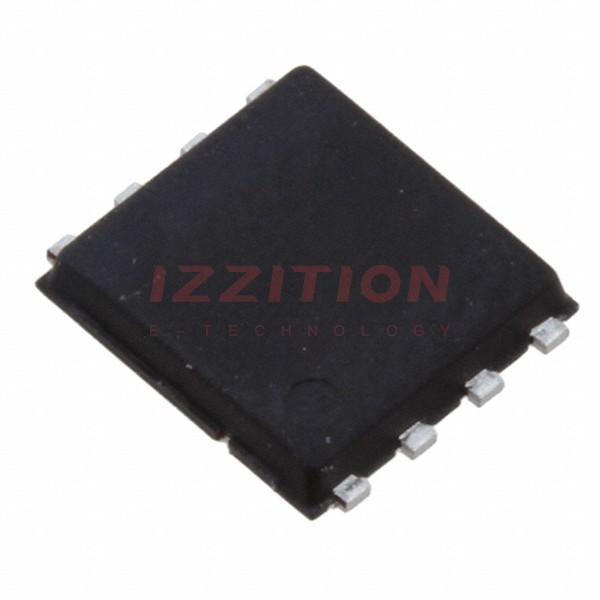

| Part Number | UPA2812T1L-E1-AT | UPA2813T1L-E1-AT |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| FET Type | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) | 27A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 30A, 10V | 6.2mOhm @ 27A, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 100 nC @ 10 V | 80 nC @ 10 V |
| Vgs (Max) | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 3740 pF @ 10 V | 3130 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 1.5W (Ta), 52W (Tc) | 1.5W (Ta), 52W (Tc) |
| Operating Temperature | 150°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | 8-HVSON (3.3x3.3) | 8-HVSON (3.3x3.3) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
