UPA2766T1A-E2-AY
  • Share:

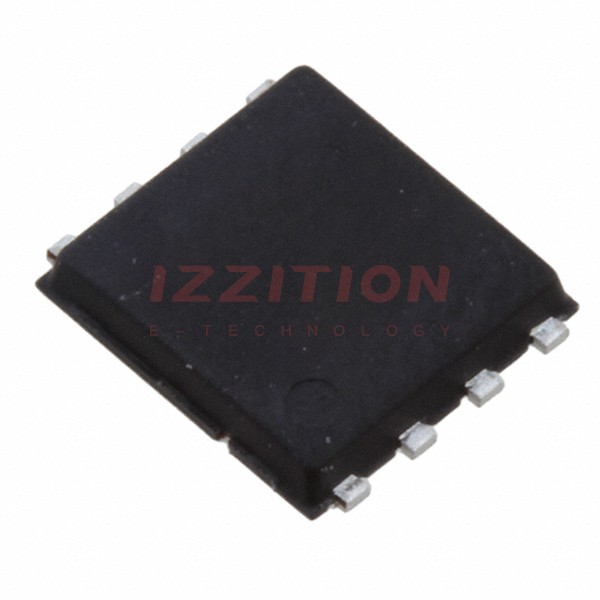

Renesas Electronics America Inc UPA2766T1A-E2-AY

Manufacturer No:
UPA2766T1A-E2-AY
Manufacturer:
Renesas Electronics America Inc
Package:
Tape & Reel (TR)
Datasheet:
UPA2766T1A-E2-AY Datasheet
ECAD Model:
-
Description:
MOSFET N-CH 30V 130A 8HVSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:130A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:1.82mOhm @ 39A, 4.5V
Vgs(th) (Max) @ Id:-
Gate Charge (Qg) (Max) @ Vgs:257 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:10850 pF @ 10 V
FET Feature:-
Power Dissipation (Max):1.5W (Ta), 83W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-HVSON (5x5.4)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$0.82
478

Please send RFQ , we will respond immediately.
