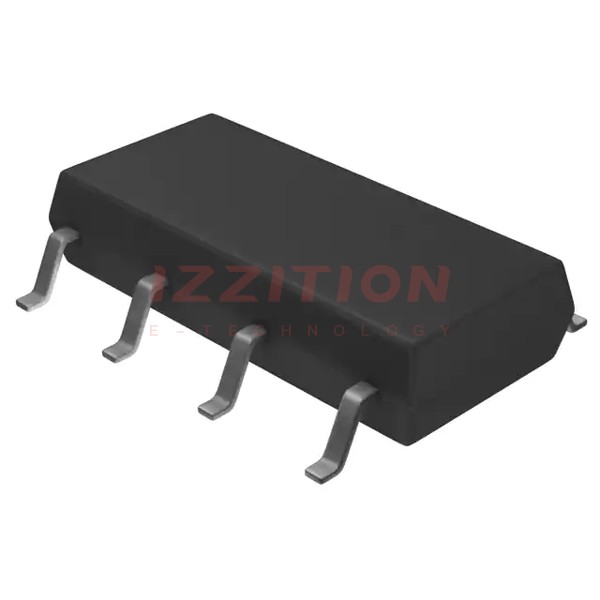

| Part Number | UPA2737GR-E1-AX | UPA2738GR-E1-AX | UPA2735GR-E1-AX | UPA2736GR-E1-AX | UPA2737GR-E1-AT |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) | 10A (Ta) | 16A (Ta) | 14A (Ta) | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 13mOhm @ 11A, 10V | 15mOhm @ 10A, 10V | 5mOhm @ 16A, 10V | 7mOhm @ 14A, 10V | 13mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 45 nC @ 10 V | 37 nC @ 10 V | 195 nC @ 10 V | 80 nC @ 10 V | 45 nC @ 10 V |
| Vgs (Max) | ±20V | ±20V | ±20V | ±20V | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1750 pF @ 10 V | 1450 pF @ 10 V | 6250 pF @ 10 V | 3400 pF @ 10 V | 1750 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 2.5W (Ta) | 2.5W (Ta) | 2.5W (Ta) | 2.5W (Ta) | 1.1W (Ta) |
| Operating Temperature | 150°C | 150°C | 150°C | 150°C | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOP | 8-SOP | 8-SOP | 8-SOP | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.173", 4.40mm Width) |
