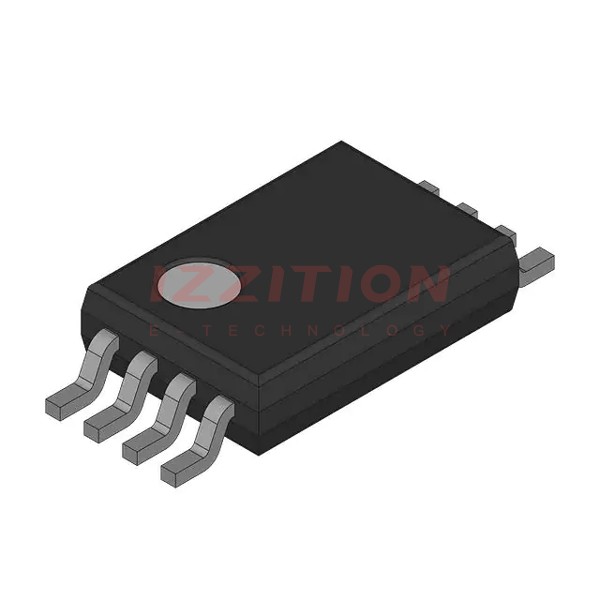

| Part Number | UPA2520T1H-T2-AT | UPA2521T1H-T2-AT | UPA2520T1H-T1-AT |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 8A (Ta) | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - |
| Rds On (Max) @ Id, Vgs | 13.2mOhm @ 10A, 10V | 16.5mOhm @ 8A, 10V | 13.2mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | 2.5V @ 1mA | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 10.8 nC @ 5 V | 7.6 nC @ 5 V | 10.8 nC @ 5 V |
| Vgs (Max) | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1100 pF @ 15 V | 780 pF @ 15 V | 1100 pF @ 15 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 1W (Ta) | 1W (Ta) | 1W (Ta) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-VSOF | 8-VSOF | 8-VSOF |
| Package / Case | 8-SMD, Flat Lead | 8-SMD, Flat Lead | 8-SMD, Flat Lead |
