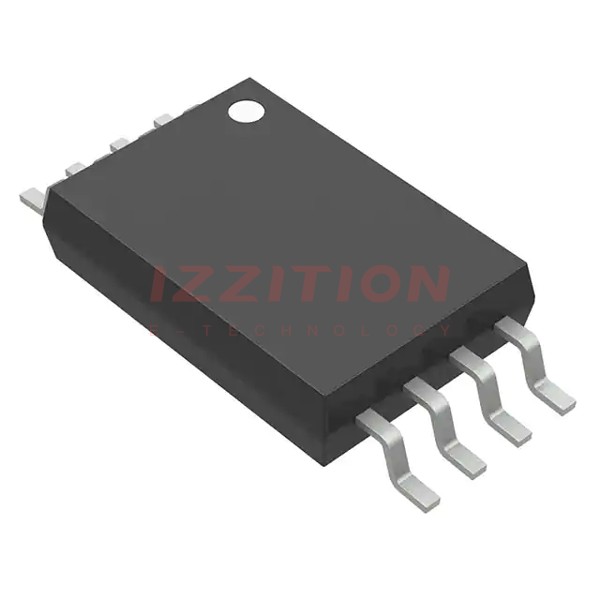

| Part Number | UPA1818GR-9JG-E1-A | UPA1814GR-9JG-E1-A | UPA1815GR-9JG-E1-A | UPA1816GR-9JG-E1-A |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Last Time Buy | Last Time Buy | Obsolete |
| FET Type | P-Channel | P-Channel | P-Channel | P-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V | 30 V | 20 V | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) | 7A (Ta) | 7A (Ta) | 9A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - | - |
| Rds On (Max) @ Id, Vgs | 15.2mOhm @ 5A, 4.5V | 16mOhm @ 3.5A, 10V | 15mOhm @ 3.5A, 4.5V | 15mOhm @ 4.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.5V @ 1mA | 2.5V @ 1mA | 1.5V @ 1mA | 1.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 20 nC @ 4 V | 38 nC @ 10 V | 25 nC @ 4 V | 15 nC @ 4 V |
| Vgs (Max) | - | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2200 pF @ 10 V | 2180 pF @ 10 V | 3000 pF @ 10 V | 1570 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | - | - | - | - |
| Operating Temperature | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-TSSOP | 8-TSSOP | 8-TSSOP | 8-TSSOP |
| Package / Case | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) | 8-TSSOP (0.173", 4.40mm Width) |
