Renesas Electronics America Inc-RV1S9260ACCSP-10YV#SC0 - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	10 mA
Data Rate:	15Mbps
Propagation Delay tpLH / tpHL (Max):	60ns, 60ns
Rise / Fall Time (Typ):	5ns, 5ns
Voltage - Forward (Vf) (Typ):	1.55V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	2.7V ~ 5.5V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	5-SMD, Gull Wing
Supplier Device Package:	5-LSSO

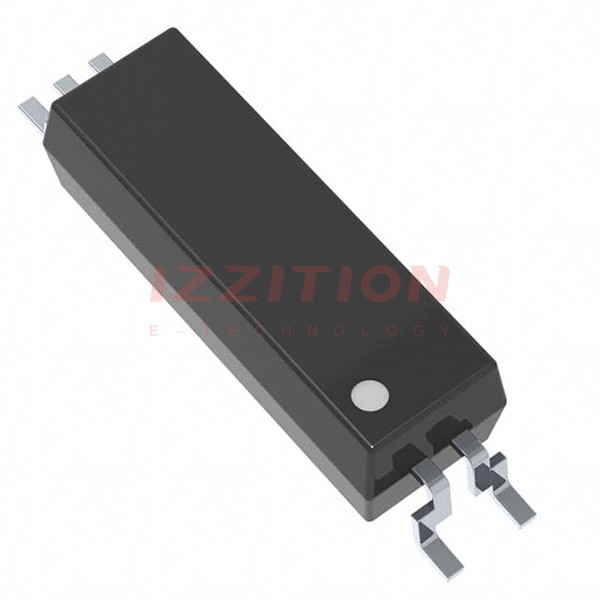

Renesas Electronics America Inc RV1S9260ACCSP-10YV#SC0
