RV1S9209ACCSP-10YV#SC0
  • Share:

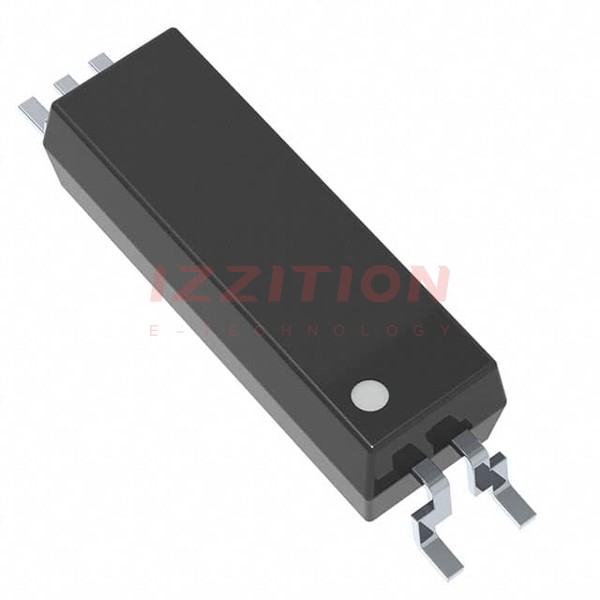

Renesas Electronics America Inc RV1S9209ACCSP-10YV#SC0

Manufacturer No:
RV1S9209ACCSP-10YV#SC0
Manufacturer:
Renesas Electronics America Inc
Package:
Strip
Datasheet:
RV1S9209ACCSP-10YV#SC0 Datasheet
ECAD Model:
-
Description:
IPM DRIVER (ACTIVE HIGH OUTPUT),
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Attributes

Number of Channels:1
Inputs - Side 1/Side 2:1/0
Voltage - Isolation:5000Vrms
Common Mode Transient Immunity (Min):50kV/µs
Input Type:DC
Output Type:Push-Pull, Totem Pole
Current - Output / Channel:25 mA
Data Rate:-
Propagation Delay tpLH / tpHL (Max):200ns, 200ns
Rise / Fall Time (Typ):25ns, 5ns
Voltage - Forward (Vf) (Typ):1.56V
Current - DC Forward (If) (Max):20mA
Voltage - Supply:4.5V ~ 20V
Operating Temperature:-40°C ~ 125°C
Mounting Type:Surface Mount
Package / Case:5-SMD, Gull Wing
Supplier Device Package:5-LSSO
0 Remaining View Similar

In Stock

$4.20
86

Please send RFQ , we will respond immediately.
