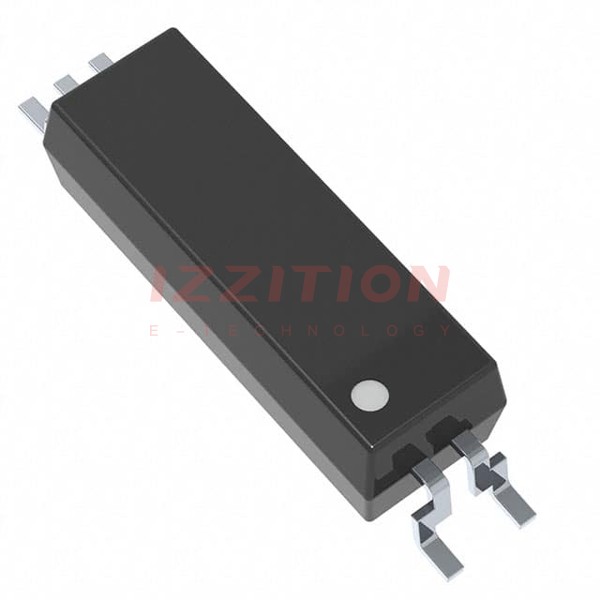

Renesas Electronics America Inc-RV1S9209ACCSP-10YC#SC0 - Optoisolators - Logic Output Product Specifications and Latest Quotes

Number of Channels:	1
Inputs - Side 1/Side 2:	1/0
Voltage - Isolation:	5000Vrms
Common Mode Transient Immunity (Min):	50kV/µs
Input Type:	DC
Output Type:	Push-Pull, Totem Pole
Current - Output / Channel:	25 mA
Data Rate:	-
Propagation Delay tpLH / tpHL (Max):	200ns, 200ns
Rise / Fall Time (Typ):	25ns, 5ns
Voltage - Forward (Vf) (Typ):	1.56V
Current - DC Forward (If) (Max):	20mA
Voltage - Supply:	4.5V ~ 20V
Operating Temperature:	-40°C ~ 125°C
Mounting Type:	Surface Mount
Package / Case:	5-SMD, Gull Wing
Supplier Device Package:	5-LSSO

Renesas Electronics America Inc RV1S9209ACCSP-10YC#SC0
