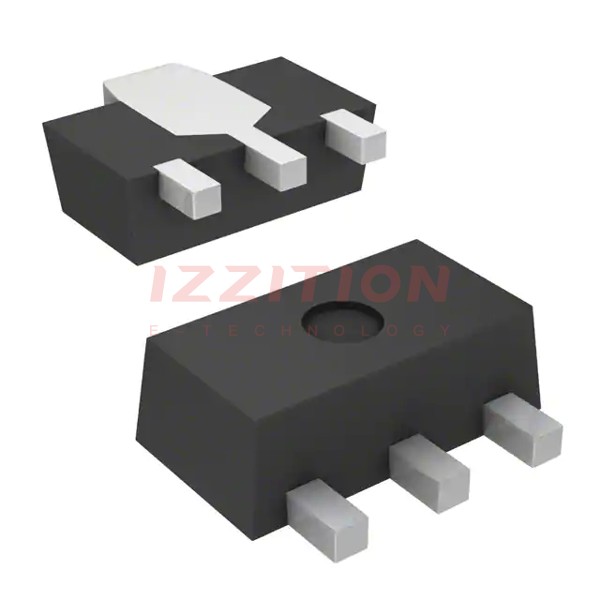

Renesas Electronics America Inc-RQK0607AQDQS#H1 - Transistors - FETs, MOSFETs - Single Product Specifications and Latest Quotes

FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	2.4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	270mOhm @ 1.2A, 4.5V
Vgs(th) (Max) @ Id:	-
Gate Charge (Qg) (Max) @ Vgs:	2 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	170 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.5W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	UPAK
Package / Case:	TO-243AA

Renesas Electronics America Inc RQK0607AQDQS#H1
