Renesas Electronics America Inc-RKD700KL#R1 - Diodes - Rectifiers - Single Product Specifications and Latest Quotes

Diode Type:	Schottky
Voltage - DC Reverse (Vr) (Max):	30 V
Current - Average Rectified (Io):	50mA
Voltage - Forward (Vf) (Max) @ If:	430 mV @ 10 mA
Speed:	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):	-
Current - Reverse Leakage @ Vr:	1 µA @ 30 V
Capacitance @ Vr, F:	2.8pF @ 1V, 1MHz
Mounting Type:	Surface Mount
Package / Case:	2-SMD, Flat Lead
Supplier Device Package:	2-EFP
Operating Temperature - Junction:	125°C (Max)

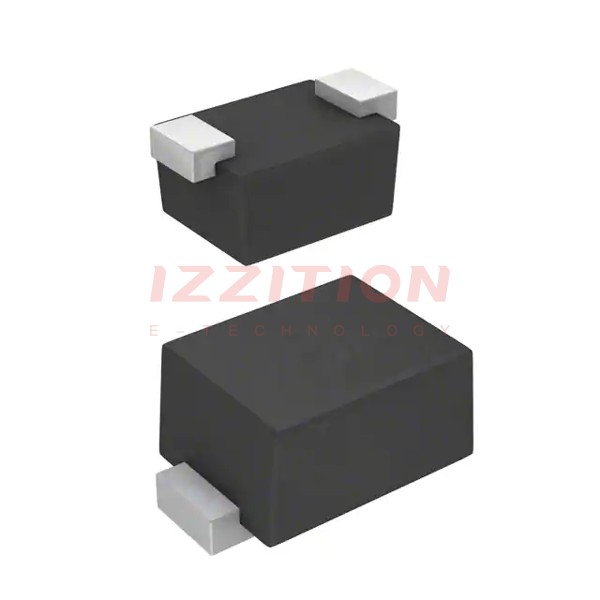

Renesas Electronics America Inc RKD700KL#R1
