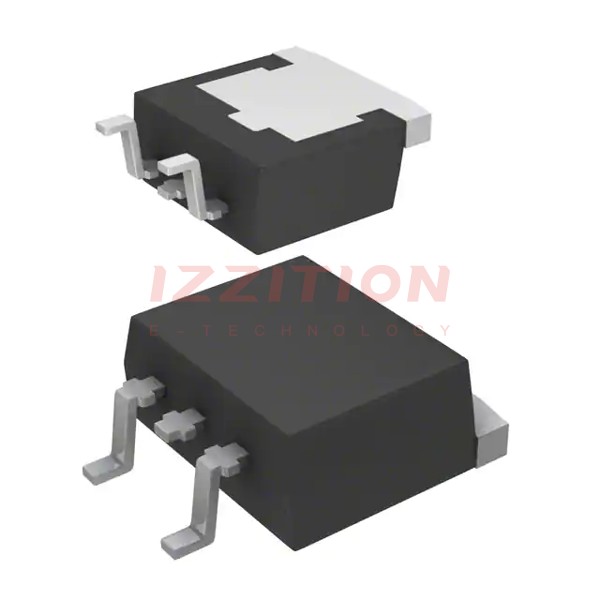

| Part Number | RJU6053SDPE-00#J3 | RJU6054SDPE-00#J3 | RJU6052SDPE-00#J3 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| Diode Type | Standard | Standard | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V | 600 V | 600 V |
| Current - Average Rectified (Io) | 20A | 30A | 20A |
| Voltage - Forward (Vf) (Max) @ If | 3 V @ 20 A | 3 V @ 30 A | 3 V @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 25 ns | 25 ns | 25 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V | 1 µA @ 600 V | 1 µA @ 600 V |
| Capacitance @ Vr, F | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Package / Case | SC-83 | SC-83 | SC-83 |
| Supplier Device Package | LDPAK | LDPAK | LDPAK |
| Operating Temperature - Junction | -55°C ~ 150°C | -55°C ~ 150°C | -55°C ~ 150°C |
