Renesas Electronics America Inc-RJP65T43DPQ-A0#T2 - Transistors - IGBTs - Single Product Specifications and Latest Quotes

IGBT Type:	Trench
Voltage - Collector Emitter Breakdown (Max):	650 V
Current - Collector (Ic) (Max):	60 A
Current - Collector Pulsed (Icm):	-
Vce(on) (Max) @ Vge, Ic:	2.4V @ 15V, 20A
Power - Max:	150 W
Switching Energy:	170µJ (on), 130µJ (off)
Input Type:	Standard
Gate Charge:	69 nC
Td (on/off) @ 25°C:	35ns/105ns
Test Condition:	400V, 20A, 10Ohm, 15V
Reverse Recovery Time (trr):	-
Operating Temperature:	175°C (TJ)
Mounting Type:	Through Hole
Package / Case:	TO-247-3
Supplier Device Package:	TO-247A

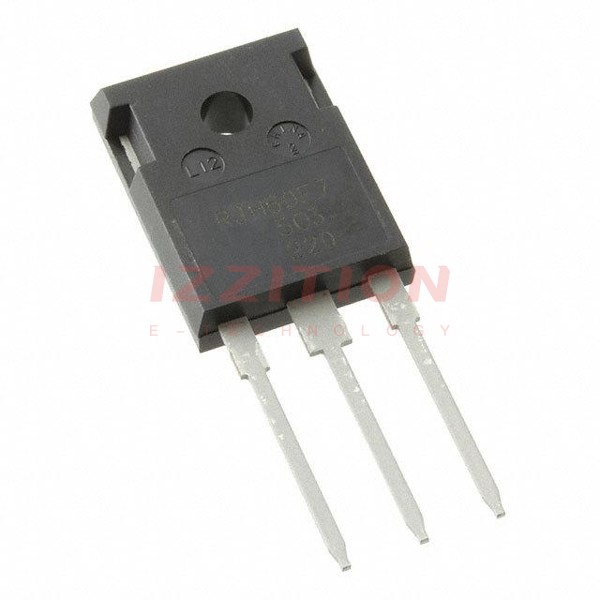

Renesas Electronics America Inc RJP65T43DPQ-A0#T2
