Please send RFQ , we will respond immediately.

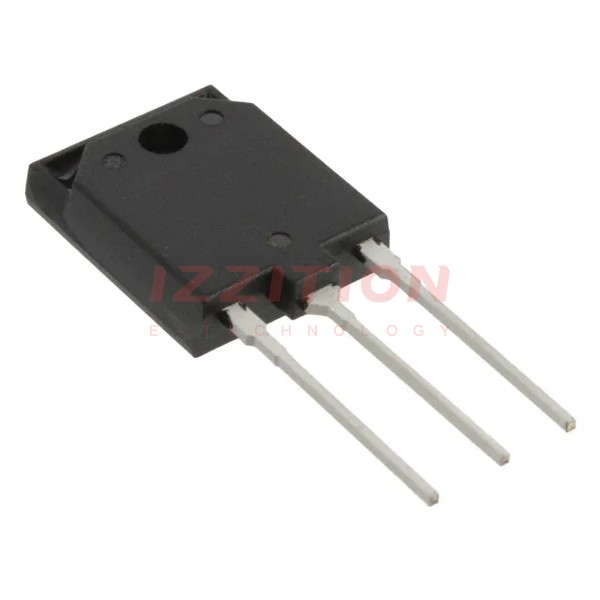

| Part Number | RJP60F5DPM-00#T1 | RJP6065DPM-00#T1 | RJP60F0DPM-00#T1 | RJP60F4DPM-00#T1 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Discontinued at Digi-Key | Active | Obsolete | Active |
| IGBT Type | Trench | - | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | - | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 80 A | - | 50 A | 60 A |
| Current - Collector Pulsed (Icm) | - | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 40A | - | 1.82V @ 15V, 25A | 1.82V @ 15V, 30A |
| Power - Max | 45 W | - | 40 W | 41.2 W |
| Switching Energy | - | - | - | - |
| Input Type | Standard | - | Standard | Standard |
| Gate Charge | 74 nC | - | - | - |
| Td (on/off) @ 25°C | 53ns/90ns | - | 46ns/70ns | 45ns/70ns |
| Test Condition | 400V, 30A, 5Ohm, 15V | - | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | - |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | - | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | - | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-3PFM | - | TO-3PFM | TO-3PFM |
