| Part Number | RJP60F0DPE-00#J3 | RJP60D0DPE-00#J3 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active |
| IGBT Type | Trench | - |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 50 A | 45 A |
| Current - Collector Pulsed (Icm) | - | - |
| Vce(on) (Max) @ Vge, Ic | 1.82V @ 15V, 25A | 2.2V @ 15V, 22A |
| Power - Max | 122 W | 122 W |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | - | 45 nC |
| Td (on/off) @ 25°C | 46ns/70ns | 35ns/90ns |
| Test Condition | 400V, 30A, 5Ohm, 15V | 300V, 22A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

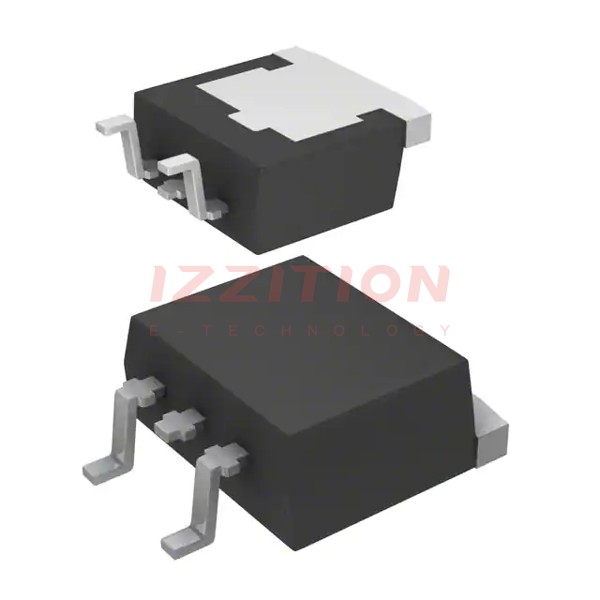

| Package / Case | SC-83 | SC-83 |
| Supplier Device Package | LDPAK | LDPAK |
