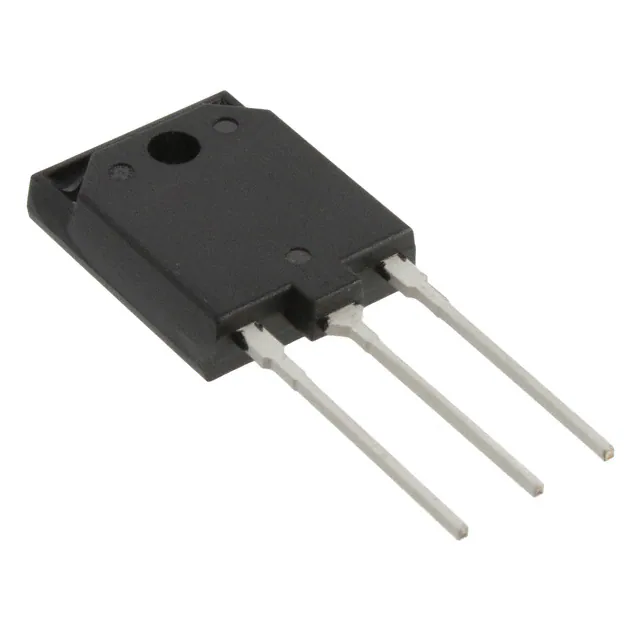

| Part Number | RJP60D0DPM-00#T1 | RJP60V0DPM-00#T1 | RJP60F0DPM-00#T1 | RJH60D0DPM-00#T1 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active |
| IGBT Type | - | Trench | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 45 A | 45 A | 50 A | 45 A |
| Current - Collector Pulsed (Icm) | - | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 22A | 2.1V @ 15V, 22A | 1.82V @ 15V, 25A | 2.2V @ 15V, 22A |
| Power - Max | 40 W | 40 W | 40 W | 40 W |
| Switching Energy | - | - | - | 230µJ (on), 290µJ (off) |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | 45 nC | 75 nC | - | 46 nC |
| Td (on/off) @ 25°C | 35ns/90ns | 45ns/100ns | 46ns/70ns | 40ns/80ns |
| Test Condition | 300V, 22A, 5Ohm, 15V | 300V, 22A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 300V, 22A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | - | - | - | 100 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-3PFM | TO-3PFM | TO-3PFM | TO-3PFM |
