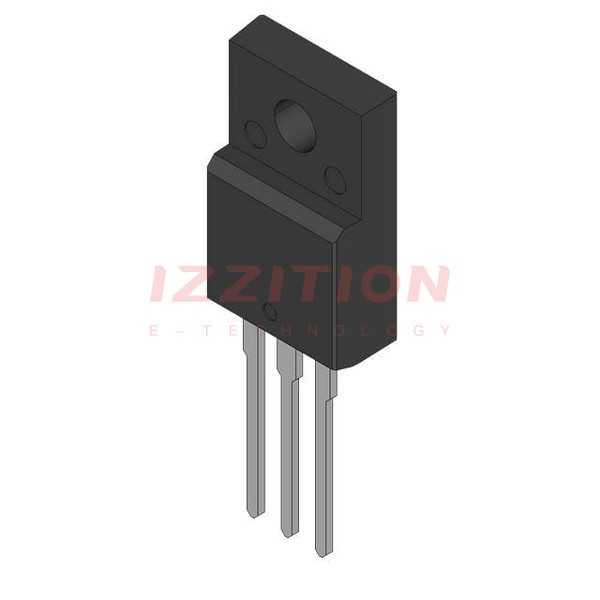

| Part Number | RJK60S4DPP-E0#T2 | RJK60S5DPP-E0#T2 | RJK60S7DPP-E0#T2 | RJK6014DPP-E0#T2 | RJK60S3DPP-E0#T2 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Tc) | 20A (Tc) | 30A (Tc) | 16A (Ta) | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | 10V | 10V | - |
| Rds On (Max) @ Id, Vgs | 290mOhm @ 8A, 10V | 178mOhm @ 10A, 10V | 125mOhm @ 15A, 10V | 575mOhm @ 8A, 10V | 440mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 18 nC @ 10 V | 27 nC @ 10 V | 39 nC @ 10 V | 45 nC @ 10 V | 13.6 nC @ 10 V |
| Vgs (Max) | - | - | +30V, -20V | ±30V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 988 pF @ 25 V | 1600 pF @ 25 V | 2300 pF @ 25 V | 1800 pF @ 25 V | 720 pF @ 25 V |
| FET Feature | Super Junction | Super Junction | Super Junction | - | Super Junction |
| Power Dissipation (Max) | 29.9W (Tc) | 33.7W (Tc) | 34.7W (Tc) | 35W (Tc) | 27.7W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220FP | TO-220FP |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
