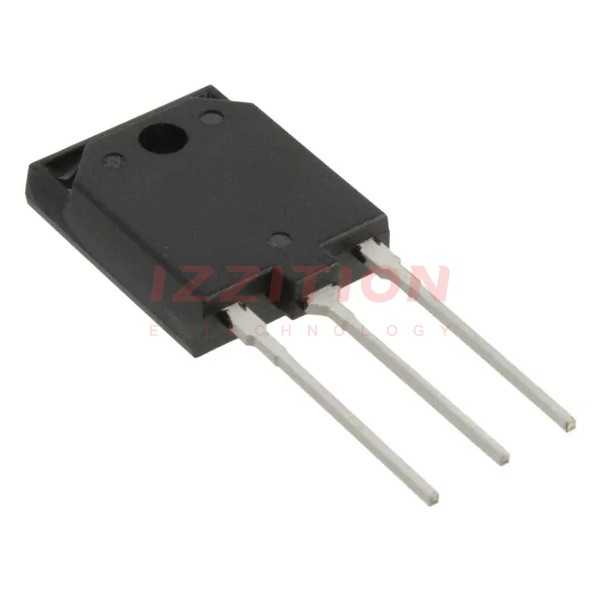

| Part Number | RJK6015DPM-00#T1 | RJK6018DPM-00#T1 | RJK5015DPM-00#T1 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 21A (Ta) | 30A (Ta) | 25A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 360mOhm @ 10.5A, 10V | 235mOhm @ 15A, 10V | 240mOhm @ 12.5A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 67 nC @ 10 V | 92 nC @ 10 V | 66 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2600 pF @ 25 V | 4100 pF @ 25 V | 2600 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 60W (Tc) | 60W (Tc) | 60W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-3PFM | TO-3PFM | TO-3PFM |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
