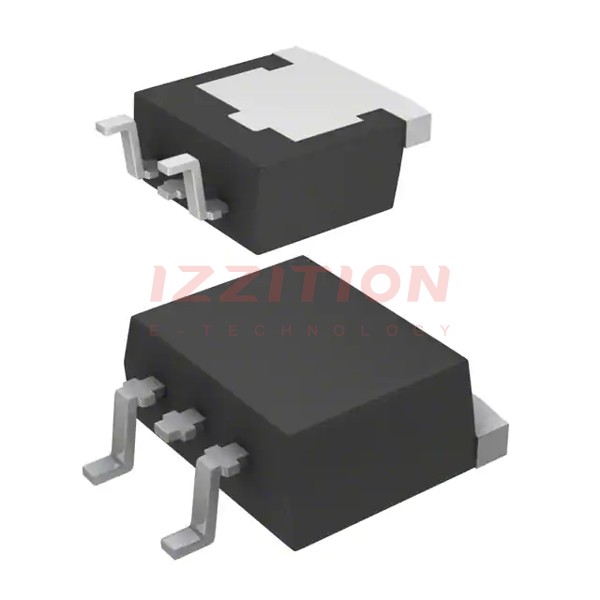

| Part Number | RJK6013DPE-WS#J3 | RJL6013DPE-WS#J3 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 11A (Ta) | 11A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 700mOhm @ 5.5A, 10V | 810mOhm @ 5.5A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1mA | 4V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 37.5 nC @ 10 V | 38 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1450 pF @ 25 V | 1400 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 100W (Tc) | 100W (Tc) |
| Operating Temperature | 150°C | 150°C |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | LDPAK | LDPAK |
| Package / Case | SC-83 | SC-83 |
