| Part Number | RJK6002DPD-00#J2 | RJK6006DPD-00#J2 | RJK6032DPD-00#J2 | RJK4002DPD-00#J2 | RJK5002DPD-00#J2 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete | Active | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V | 600 V | 600 V | 400 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) | 5A (Ta) | 3A (Ta) | 3A (Ta) | 2.4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 6.8Ohm @ 1A, 10V | 1.6Ohm @ 2.5A, 10V | 4.3Ohm @ 1.5A, 10V | 2.9Ohm @ 1.5A, 10V | 5Ohm @ 1.2A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 6.2 nC @ 10 V | 19 nC @ 10 V | 9 nC @ 10 V | 6 nC @ 10 V | 6.7 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 165 pF @ 25 V | 600 pF @ 25 V | 285 pF @ 25 V | 165 pF @ 25 V | 165 pF @ 25 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 30W (Tc) | 77.6W (Tc) | 40.3W (Tc) | 30W (Tc) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | MP-3A | MP-3A | MP-3A | MP-3A | MP-3A |

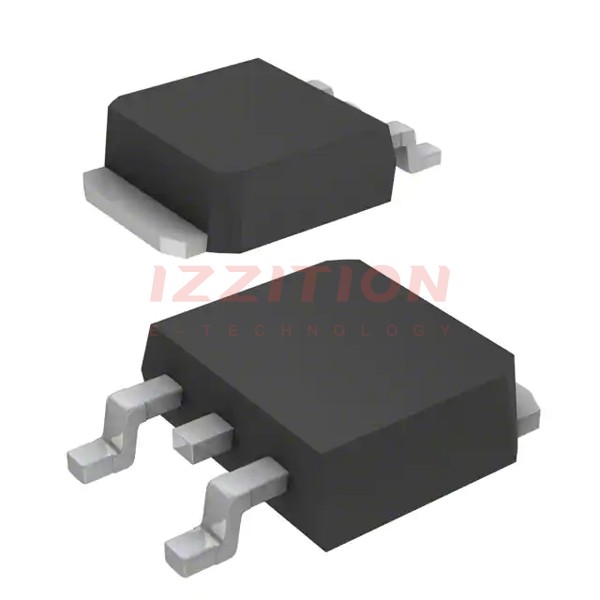

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
