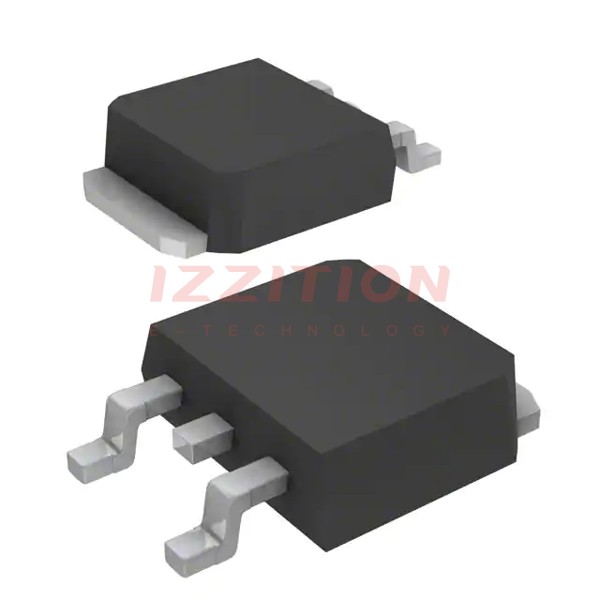

| Part Number | RJK5030DPD-00#J2 | RJK5033DPD-00#J2 | RJK5031DPD-00#J2 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 500 V | 500 V | 500 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) | 6A (Ta) | 3A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 1.6Ohm @ 2A, 10V | 1.3Ohm @ 3A, 10V | 3.2Ohm @ 1.5A, 10V |
| Vgs(th) (Max) @ Id | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | - | - | - |
| Vgs (Max) | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 550 pF @ 25 V | 600 pF @ 25 V | 280 pF @ 25 V |
| FET Feature | - | - | - |
| Power Dissipation (Max) | 41.7W (Tc) | 65W (Tc) | 40.3W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | MP-3A | MP-3A | MP-3A |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
