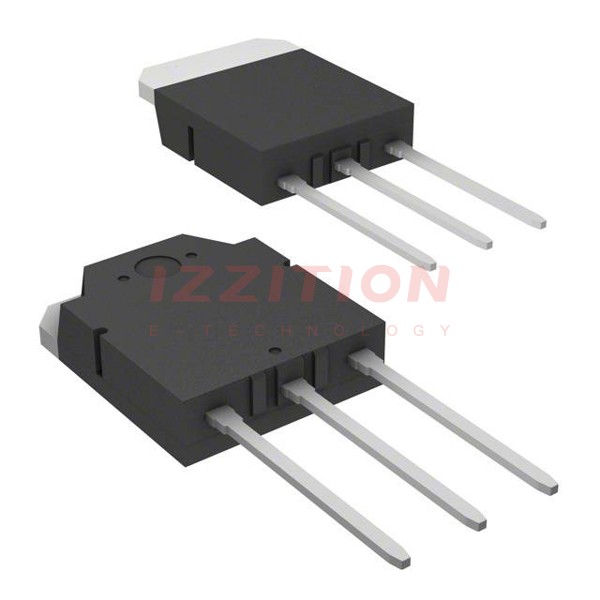

| Part Number | RJK4514DPK-00#T0 | RJK4518DPK-00#T0 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 450 V | 450 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta) | 39A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 300mOhm @ 11A, 10V | 130mOhm @ 19.5A, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 46 nC @ 10 V | 93 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1800 pF @ 25 V | 4100 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 150W (Tc) | 200W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Supplier Device Package | TO-3P | TO-3P |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack |
