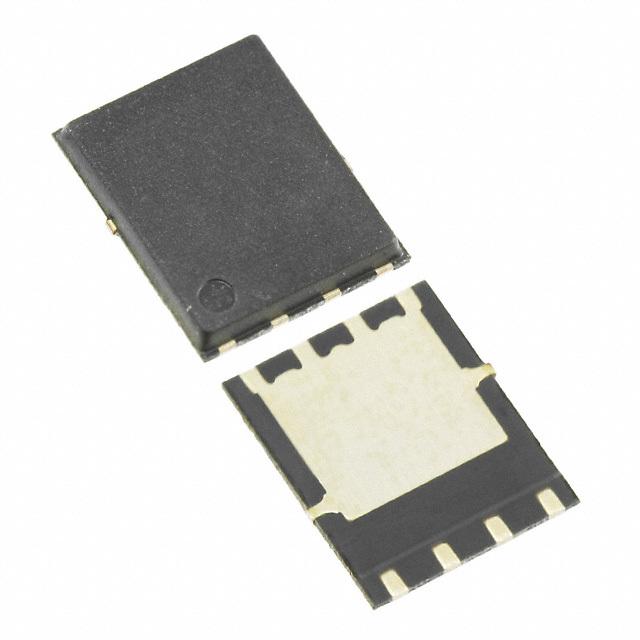

| Part Number | RJK2555DPA-WS#J0 | RJK2557DPA-WS#J0 | RJK1555DPA-WS#J0 | RJK2055DPA-WS#J0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 250 V | 250 V | 150 V | 200 V |
| Current - Continuous Drain (Id) @ 25°C | 17A (Ta) | 17A (Ta) | 25A (Ta) | 20A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 104mOhm @ 8.5A, 10V | 128mOhm @ 8.5A, 10V | 48mOhm @ 12.5A, 10V | 69mOhm @ 10A, 10V |
| Vgs(th) (Max) @ Id | 4.5V @ 1mA | 4.5V @ 1mA | 4.5V @ 1mA | 4.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 39 nC @ 10 V | 20 nC @ 10 V | 38 nC @ 10 V | 38 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 2400 pF @ 25 V | 1250 pF @ 25 V | 2400 pF @ 25 V | 2400 pF @ 25 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 30W (Tc) | 30W (Tc) | 30W (Tc) | 30W (Tc) |
| Operating Temperature | 150°C | 150°C | 150°C | 150°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WPAK (3) | 8-WPAK (3) | 8-WPAK (3) | 8-WPAK (3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
