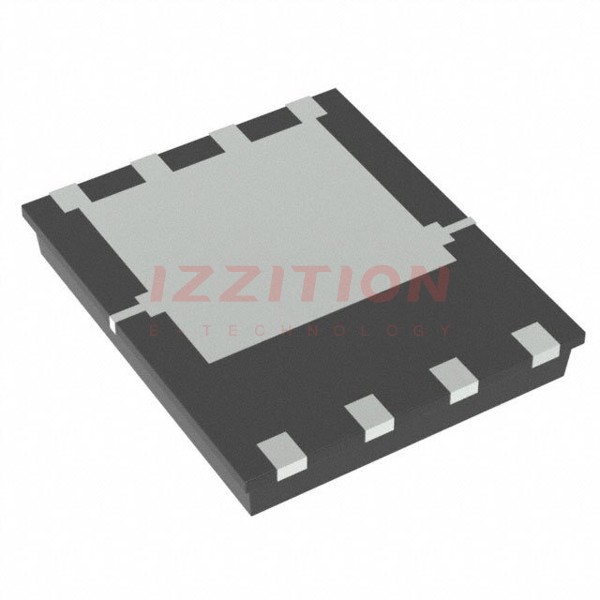

| Part Number | RJK1576DPA-00#J5A | RJK1575DPA-00#J5A |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 25A (Ta) | 25A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V | 10V |
| Rds On (Max) @ Id, Vgs | 58mOhm @ 12.5A, 10V | 48mOhm @ 12.5A, 10V |
| Vgs(th) (Max) @ Id | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 19 nC @ 10 V | 37 nC @ 10 V |
| Vgs (Max) | ±30V | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 25 V | 2200 pF @ 25 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 65W (Tc) | 65W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | WPAK(3F) (5x6) | WPAK(3F) (5x6) |
| Package / Case | 8-PowerVDFN | 8-PowerVDFN |
