Please send RFQ , we will respond immediately.

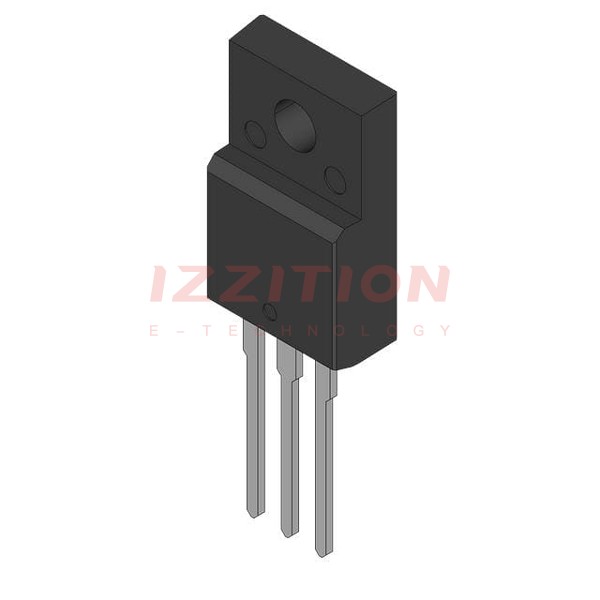

| Part Number | RJK0702DPP-E0#T2 | RJK0703DPP-E0#T2 | RJK0701DPP-E0#T2 | RJK0702DPN-E0#T2 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 75 V | 75 V | 75 V | 75 V |
| Current - Continuous Drain (Id) @ 25°C | 90A (Ta) | 70A (Ta) | 100A (Ta) | 90A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 10V | - | - |
| Rds On (Max) @ Id, Vgs | 4.8mOhm @ 45A, 10V | 6.7mOhm @ 35A, 10V | 3.8mOhm @ 50A, 10V | 4.8mOhm @ 45A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 89 nC @ 10 V | 56 nC @ 10 V | 140 nC @ 10 V | 89 nC @ 10 V |
| Vgs (Max) | - | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 6450 pF @ 10 V | 4150 pF @ 10 V | 10 pF @ 10 V | 10 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 30W (Tc) | 25W (Tc) | 30W (Tc) | 150W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Supplier Device Package | TO-220FP | TO-220FP | TO-220FP | TO-220AB |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 |
