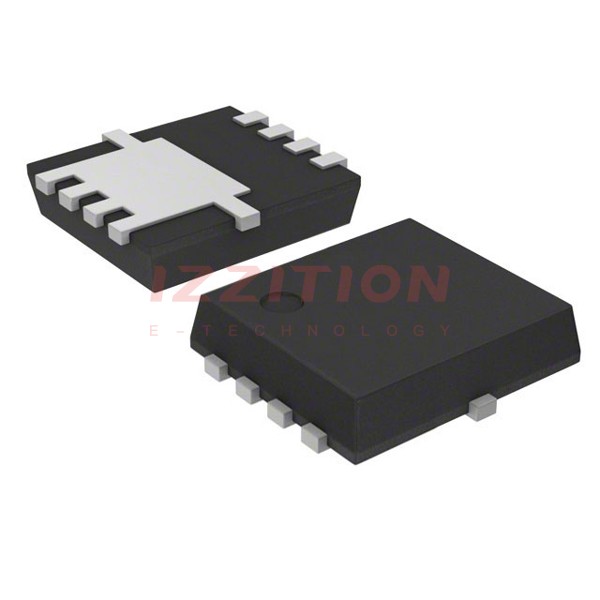

| Part Number | RJK03M9DNS-00#J5 | RJK03M5DNS-00#J5 | RJK03M6DNS-00#J5 | RJK03M8DNS-00#J5 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 14A (Ta) | 25A (Ta) | 16A (Ta) | 30A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V | - | - |
| Rds On (Max) @ Id, Vgs | 11.1mOhm @ 7A, 10V | 6.3mOhm @ 12.5A, 10V | 9.2mOhm @ 8A, 10V | 5.2mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V | 10.4 nC @ 4.5 V | 7.1 nC @ 4.5 V | 14.5 nC @ 4.5 V |
| Vgs (Max) | - | ±20V | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 980 pF @ 10 V | 1890 pF @ 10 V | 1190 pF @ 10 V | 2590 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 10W (Tc) | 15W (Tc) | 12.5W (Tc) | 20W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-HWSON (3.3x3.3) | 8-HWSON (3.3x3.3) | 8-HWSON (3.3x3.3) | 8-HWSON (3.3x3.3) |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
