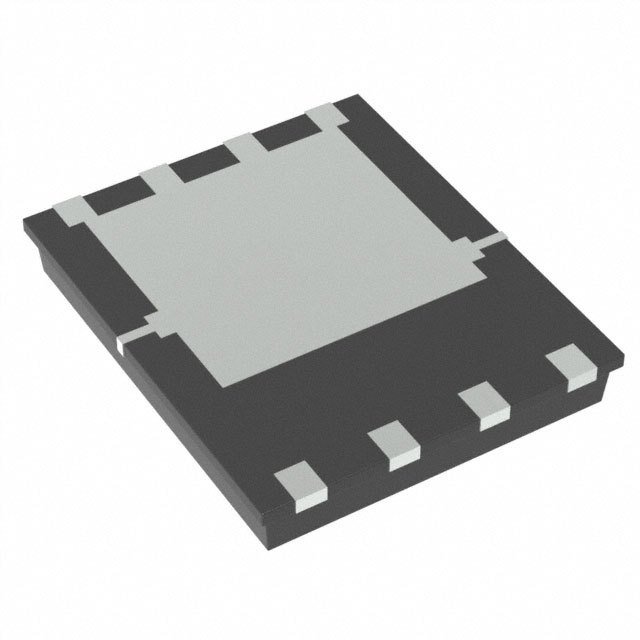

| Part Number | RJK03M1DPA-00#J5A | RJK03M7DPA-00#J5A | RJK0381DPA-00#J5A | RJK0391DPA-00#J5A |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Obsolete | Active |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 50A (Ta) | 30A (Ta) | 40A (Ta) | 50A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 2.3mOhm @ 25A, 10V | 9.6mOhm @ 15A, 10V | 4.5mOhm @ 20A, 10V | 2.9mOhm @ 25A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 25 nC @ 4.5 V | 6.6 nC @ 4.5 V | 15 nC @ 4.5 V | 34 nC @ 4.5 V |
| Vgs (Max) | ±20V | - | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 4720 pF @ 10 V | 1120 pF @ 10 V | 2200 pF @ 10 V | 5600 pF @ 10 V |
| FET Feature | - | - | - | - |
| Power Dissipation (Max) | 45W (Tc) | 25W (Tc) | 45W (Tc) | 50W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | WPAK(3F) (5x6) | 8-WPAK | 8-WPAK | 8-WPAK (3) |
| Package / Case | 8-PowerVDFN | 8-WFDFN Exposed Pad | 8-WFDFN Exposed Pad | 8-PowerWDFN |
