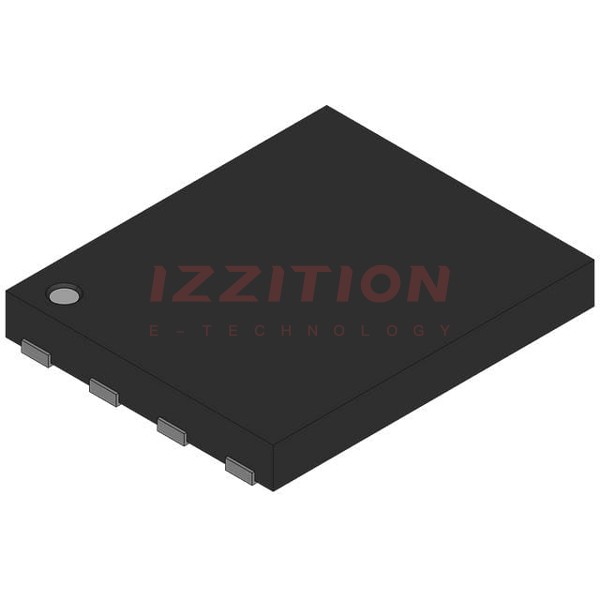

| Part Number | RJK0396DPA-00#J53 | RJK0397DPA-00#J53 | RJK0390DPA-00#J53 | RJK0393DPA-00#J53 | RJK0395DPA-00#J53 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| FET Type | N-Channel | N-Channel | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Ta) | 30A (Ta) | 65A (Ta) | 40A (Ta) | 30A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | - | - | - | - |
| Rds On (Max) @ Id, Vgs | 9mOhm @ 15A, 10V | 10.1mOhm @ 15A, 10V | 2.2mOhm @ 32.5A, 10V | 4.3mOhm @ 20A, 10V | 7.7mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 4.5 V | 7.4 nC @ 4.5 V | 54 nC @ 4.5 V | 21 nC @ 4.5 V | 11 nC @ 4.5 V |
| Vgs (Max) | - | - | - | - | - |
| Input Capacitance (Ciss) (Max) @ Vds | 1330 pF @ 10 V | 1110 pF @ 10 V | 8900 pF @ 10 V | 3270 pF @ 10 V | 1670 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 28W (Tc) | 25W (Tc) | 60W (Tc) | 40W (Tc) | 30W (Tc) |
| Operating Temperature | 150°C (TJ) | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-WPAK | 8-WPAK | 8-WPAK | 8-WPAK | 8-WPAK |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN | 8-PowerWDFN |
