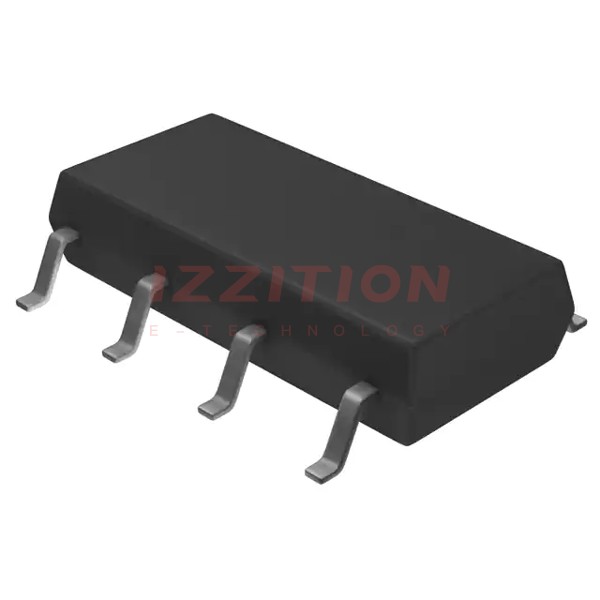

| Part Number | RJK0355DSP-00#J0 | RJK0358DSP-00#J0 | RJK0355DSP-01#J0 | RJK0352DSP-00#J0 | RJK0354DSP-00#J0 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Obsolete | Active |
| FET Type | N-Channel | - | N-Channel | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | - | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | - | 30 V | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) | - | 12A (Ta) | 18A (Ta) | 16A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - | 4.5V, 10V | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 11.1mOhm @ 6A, 10V | - | 11.1mOhm @ 6A, 10V | 5.6mOhm @ 9A, 10V | 7mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | - | - | - | - | - |
| Gate Charge (Qg) (Max) @ Vgs | 6 nC @ 4.5 V | - | 6 nC @ 4.5 V | 16 nC @ 4.5 V | 12 nC @ 4.5 V |
| Vgs (Max) | ±20V | - | ±20V | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 860 pF @ 10 V | - | 860 pF @ 10 V | 2440 pF @ 10 V | 1740 pF @ 10 V |
| FET Feature | - | - | - | - | - |
| Power Dissipation (Max) | 1.8W (Ta) | - | 1.8W (Ta) | 2W (Ta) | 2W (Ta) |
| Operating Temperature | 150°C (TJ) | - | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | - | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 8-SOP | - | 8-SOP | 8-SOP | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) | - | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) |
