| Part Number | RJK0353DPA-01#J0B | RJK0355DPA-01#J0B |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Ta) | 30A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V | - |
| Rds On (Max) @ Id, Vgs | 5.2mOhm @ 17.5A, 10V | 10.7mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 1mA | - |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V | 6.3 nC @ 4.5 V |
| Vgs (Max) | ±20V | - |
| Input Capacitance (Ciss) (Max) @ Vds | 2180 pF @ 10 V | 860 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | 40W (Tc) | 25W (Tc) |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |

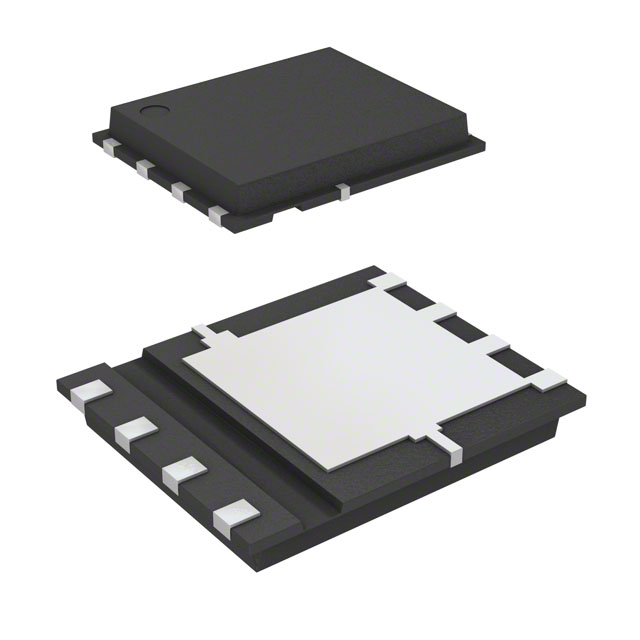

| Supplier Device Package | 8-WPAK | 8-WPAK |
| Package / Case | 8-PowerWDFN | 8-PowerWDFN |
