Please send RFQ , we will respond immediately.

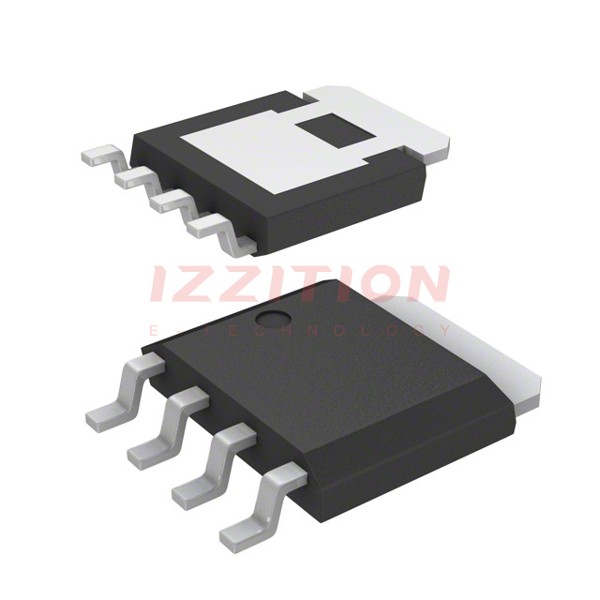

| Part Number | RJK0332DPB-00#J0 | RJK0332DPB-01#J0 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Active |
| FET Type | N-Channel | N-Channel |
| Technology | MOSFET (Metal Oxide) | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 35A (Ta) | 35A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 4.7mOhm @ 17.5A, 10V | 4.7mOhm @ 17.5A, 10V |
| Vgs(th) (Max) @ Id | - | 2.5V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V | 14 nC @ 4.5 V |
| Vgs (Max) | - | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 2180 pF @ 10 V | 2180 pF @ 10 V |
| FET Feature | - | - |
| Power Dissipation (Max) | - | 45W (Tc) |
| Operating Temperature | - | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Supplier Device Package | LFPAK | LFPAK |
| Package / Case | SC-100, SOT-669 | SC-100, SOT-669 |
