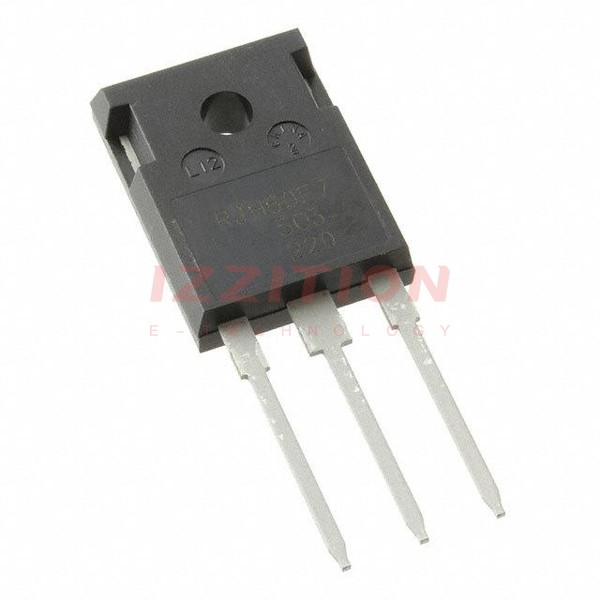

| Part Number | RJH65T46DPQ-A0#T0 | RJH65T47DPQ-A0#T0 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active |
| IGBT Type | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 650 V | 650 V |
| Current - Collector (Ic) (Max) | 80 A | 90 A |
| Current - Collector Pulsed (Icm) | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 40A | 2.4V @ 15V, 45A |
| Power - Max | 340.9 W | 375 W |
| Switching Energy | 450µJ (on), 550µJ (off) | 520µJ (on), 560µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 138 nC | 127 nC |
| Td (on/off) @ 25°C | 45ns/170ns | 45ns/190ns |
| Test Condition | 400V, 40A, 10Ohm, 15V | 400V, 45A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns | 100 ns |
| Operating Temperature | 175°C (TJ) | 175°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247A | TO-247A |
