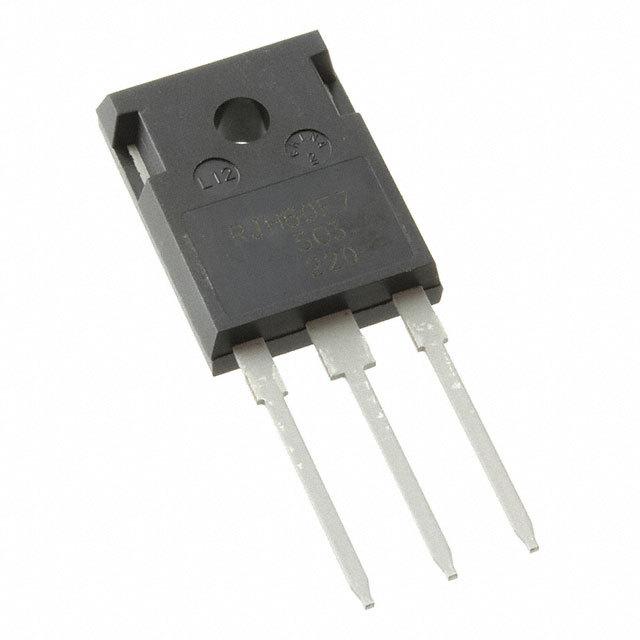

| Part Number | RJH60T04DPQ-A1#T0 | RJH60T04DPQ-A0#T0 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete |
| IGBT Type | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 60 A | 60 A |
| Current - Collector Pulsed (Icm) | - | 180 A |
| Vce(on) (Max) @ Vge, Ic | 1.95V @ 15V, 30A | 1.95V @ 15V, 30A |
| Power - Max | 208.3 W | 208.3 W |
| Switching Energy | - | - |
| Input Type | Standard | Standard |
| Gate Charge | 87 nC | 87 nC |
| Td (on/off) @ 25°C | 54ns/136ns | 54ns/136ns |
| Test Condition | 400V, 30A, 10Ohm, 15V | 300V, 30A, 10Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns | 100 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247A | TO-247A |
