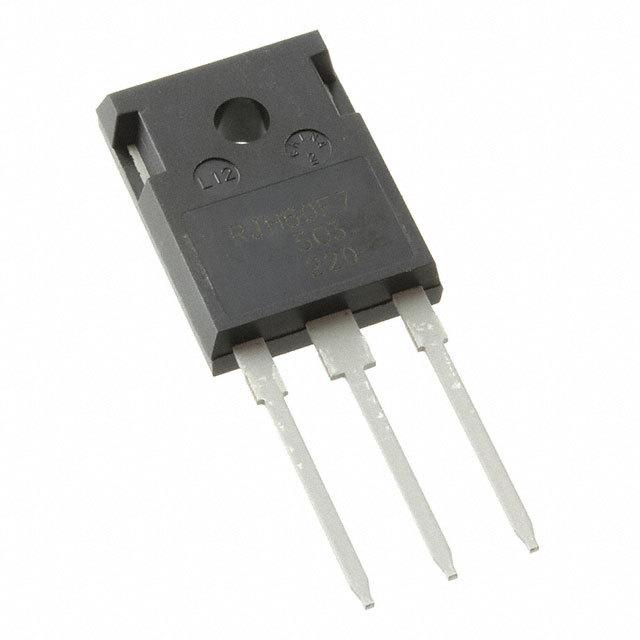

| Part Number | RJH60F7BDPQ-A0#T0 | RJH60F7DPQ-A0#T0 | RJH60F5BDPQ-A0#T0 | RJH60F6BDPQ-A0#T0 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Obsolete |
| IGBT Type | Trench | Trench | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 90 A | 90 A | 80 A | 85 A |
| Current - Collector Pulsed (Icm) | - | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 1.75V @ 15V, 50A | 1.75V @ 15V, 50A | 1.8V @ 15V, 40A | 1.75V @ 15V, 45A |
| Power - Max | 328.9 W | 328.9 W | 260.4 W | 297.6 W |
| Switching Energy | - | - | - | - |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | - | - | - | - |
| Td (on/off) @ 25°C | 63ns/142ns | 63ns/142ns | 53ns/95ns | 58ns/131ns |
| Test Condition | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 25 ns | 90 ns | 25 ns | 25 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247A | TO-247A | TO-247A | TO-247A |
