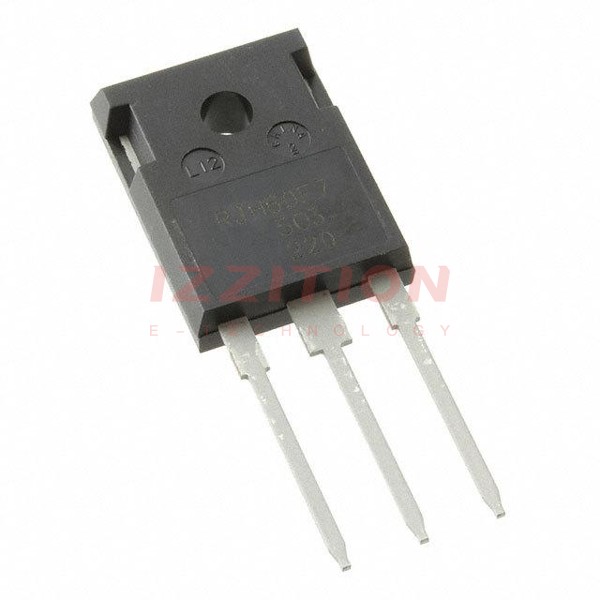

| Part Number | RJH60F5DPQ-A0#T0 | RJH60F6DPQ-A0#T0 | RJH60F7DPQ-A0#T0 | RJH60F0DPQ-A0#T0 | RJH60F3DPQ-A0#T0 | RJH60F4DPQ-A0#T0 | RJH60F5BDPQ-A0#T0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Active | Active | Active | Obsolete | Active |
| IGBT Type | Trench | Trench | Trench | Trench | Trench | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 80 A | 85 A | 90 A | 50 A | 40 A | 60 A | 80 A |
| Current - Collector Pulsed (Icm) | - | - | - | - | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 1.8V @ 15V, 40A | 1.75V @ 15V, 45A | 1.75V @ 15V, 50A | 1.82V @ 15V, 25A | 1.82V @ 15V, 20A | 1.82V @ 15V, 30A | 1.8V @ 15V, 40A |
| Power - Max | 260.4 W | 297.6 W | 328.9 W | 201.6 W | 178.5 W | 235.8 W | 260.4 W |
| Switching Energy | - | - | - | - | - | - | - |
| Input Type | Standard | Standard | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | - | - | - | - | - | - | - |
| Td (on/off) @ 25°C | 53ns/105ns | 58ns/131ns | 63ns/142ns | 46ns/70ns | 44ns/65ns | 45ns/85ns | 53ns/95ns |
| Test Condition | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V | 400V, 30A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 90 ns | 90 ns | 90 ns | 90 ns | 90 ns | 90 ns | 25 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247A | TO-247A | TO-247A | TO-247A | TO-247A | TO-247A | TO-247A |
