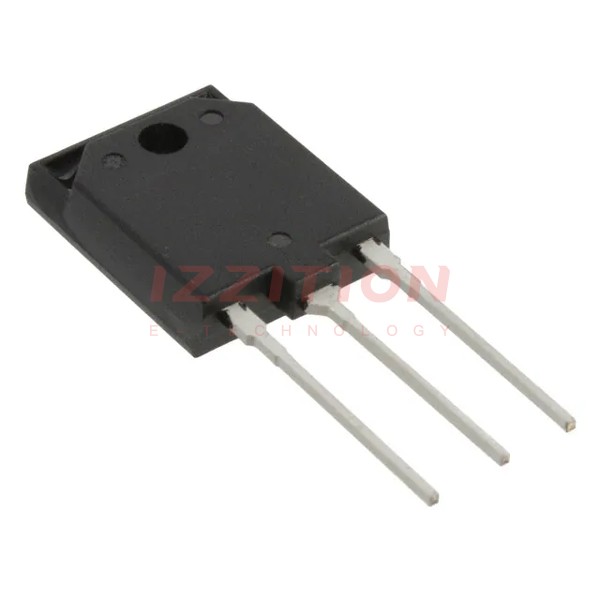

| Part Number | RJH60D0DPM-00#T1 | RJH60D5DPM-00#T1 | RJH60D7DPM-00#T1 | RJP60D0DPM-00#T1 | RJH60D6DPM-00#T1 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Active | Active |
| IGBT Type | Trench | Trench | Trench | - | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 45 A | 75 A | 90 A | 45 A | 80 A |
| Current - Collector Pulsed (Icm) | - | - | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 22A | 2.2V @ 15V, 37A | 2.2V @ 15V, 50A | 2.2V @ 15V, 22A | 2.2V @ 15V, 40A |
| Power - Max | 40 W | 45 W | 55 W | 40 W | 50 W |
| Switching Energy | 230µJ (on), 290µJ (off) | 650µJ (on), 270µJ (off) | 1.1mJ (on), 600µJ (off) | - | 850µJ (on), 600µJ (off) |
| Input Type | Standard | Standard | Standard | Standard | Standard |
| Gate Charge | 46 nC | 78 nC | 130 nC | 45 nC | 104 nC |
| Td (on/off) @ 25°C | 40ns/80ns | 50ns/135ns | 60ns/190ns | 35ns/90ns | 50ns/160ns |
| Test Condition | 300V, 22A, 5Ohm, 15V | 300V, 37A, 5Ohm, 15V | 300V, 50A, 5Ohm, 15V | 300V, 22A, 5Ohm, 15V | 300V, 40A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns | 100 ns | 100 ns | - | 100 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack | TO-220-3 Full Pack |
| Supplier Device Package | TO-3PFM | TO-3PFM | TO-3PFM | TO-3PFM | TO-3PFM |
