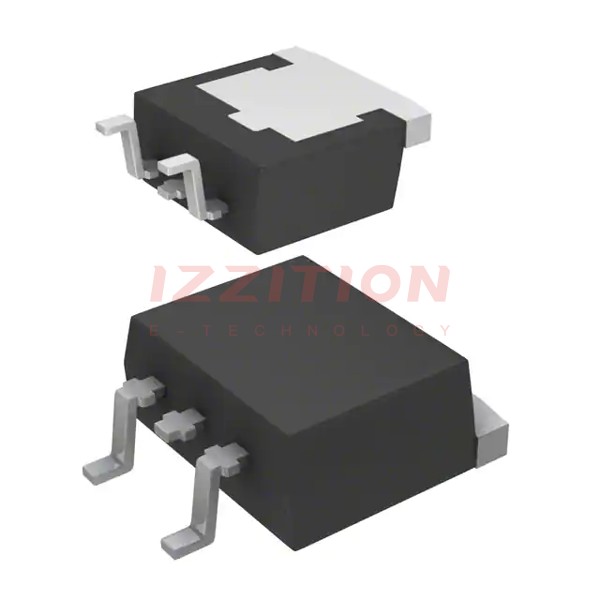

| Part Number | RJH60A83RDPE-00#J3 | RJH60A85RDPE-00#J3 |
|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete |
| IGBT Type | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 20 A | 30 A |
| Current - Collector Pulsed (Icm) | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.6V @ 15V, 10A | 1.8V @ 15V, 15A |
| Power - Max | 52 W | 113 W |
| Switching Energy | 230µJ (on), 160µJ (off) | 430µJ (on), 300µJ (off) |
| Input Type | Standard | Standard |
| Gate Charge | 19.7 nC | 56 nC |
| Td (on/off) @ 25°C | 31ns/54ns | 40ns/86ns |
| Test Condition | 300V, 10A, 5Ohm, 15V | 300V, 15A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 130 ns | 160 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | SC-83 | SC-83 |
| Supplier Device Package | LDPAK | LDPAK |
