Please send RFQ , we will respond immediately.
| Part Number | RJH60A81RDPD-A0#J2 | RJH60A83RDPD-A0#J2 | RJH60A01RDPD-A0#J2 |
|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete |
| IGBT Type | Trench | Trench | Trench |
| Voltage - Collector Emitter Breakdown (Max) | 600 V | 600 V | 600 V |
| Current - Collector (Ic) (Max) | 10 A | 20 A | 10 A |
| Current - Collector Pulsed (Icm) | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 5A | 2.6V @ 15V, 10A | 2.3V @ 15V, 5A |
| Power - Max | 29.4 W | 51 W | 29.4 W |
| Switching Energy | 130µJ (on), 60µJ (off) | 230µJ (on), 160µJ (off) | 130µJ (on), 70µJ (off) |
| Input Type | Standard | Standard | Standard |
| Gate Charge | 11 nC | 19.7 nC | 11 nC |
| Td (on/off) @ 25°C | 30ns/40ns | 31ns/54ns | 30ns/40ns |
| Test Condition | 300V, 5A, 5Ohm, 15V | 300V, 10A, 5Ohm, 15V | 300V, 5A, 5Ohm, 15V |
| Reverse Recovery Time (trr) | 100 ns | 130 ns | 100 ns |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |

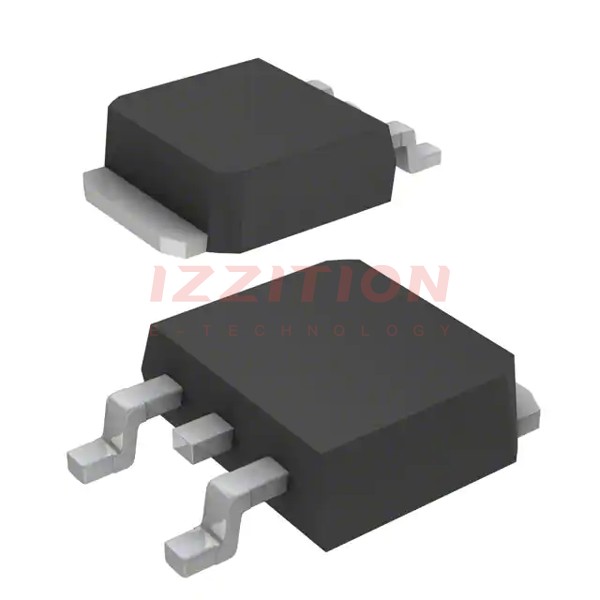

| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 | TO-252-3, DPak (2 Leads + Tab), SC-63 |
| Supplier Device Package | TO-252 | TO-252 | TO-252 |
