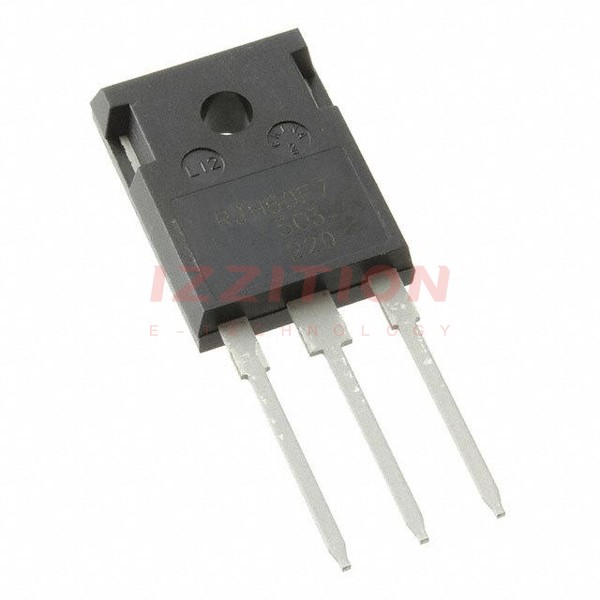

| Part Number | RJH1CF4RDPQ-80#T2 | RJH1CF6RDPQ-80#T2 | RJH1CF7RDPQ-80#T2 | RJH1CF5RDPQ-80#T2 |
|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Obsolete | Active | Obsolete |
| IGBT Type | - | - | - | - |
| Voltage - Collector Emitter Breakdown (Max) | 1200 V | 1200 V | 1200 V | 1200 V |
| Current - Collector (Ic) (Max) | 40 A | 55 A | 60 A | 50 A |
| Current - Collector Pulsed (Icm) | - | - | - | - |
| Vce(on) (Max) @ Vge, Ic | 2.5V @ 15V, 20A | 2.3V @ 15V, 30A | 2.4V @ 15V, 35A | 2.4V @ 15V, 25A |
| Power - Max | 156.2 W | 227.2 W | 250 W | 192.3 W |
| Switching Energy | - | - | - | - |
| Input Type | Standard | Standard | Standard | Standard |
| Gate Charge | - | - | - | - |
| Td (on/off) @ 25°C | - | - | - | - |
| Test Condition | - | - | - | - |
| Reverse Recovery Time (trr) | - | - | - | - |
| Operating Temperature | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) | 150°C (TJ) |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Package / Case | TO-247-3 | TO-247-3 | TO-247-3 | TO-247-3 |
| Supplier Device Package | TO-247 | TO-247 | TO-247 | TO-247 |
