Please send RFQ , we will respond immediately.
| Part Number | RAA230222GSB#HA0 | RAA230223GSB#HA0 | RAA230232GSB#HA0 | RAA230122GSB#HA0 | RAA230221GSB#HA0 |
|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down |
| Output Configuration | Positive | Positive | Positive | Positive | Positive |
| Topology | Buck | Buck | Buck | Buck | Buck |
| Output Type | Fixed | Adjustable | Fixed | Fixed | Adjustable (Fixed) |
| Number of Outputs | 2 | 2 | 2 | 1 | 2 |
| Voltage - Input (Min) | 4.5V | 4.5V | 4.5V | 4.5V | 4.5V |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V |
| Voltage - Output (Min/Fixed) | 3.3V (5V) | 0.8V | 3.3V, 5V | 5V | 0.8V (3.3V) |
| Voltage - Output (Max) | - | 6V | - | - | 6V |
| Current - Output | 3A | 3A | 3A | 3A | 3A |
| Frequency - Switching | 1.1MHz | 1.1MHz | 1.1MHz | 1.1MHz | 1.1MHz |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |

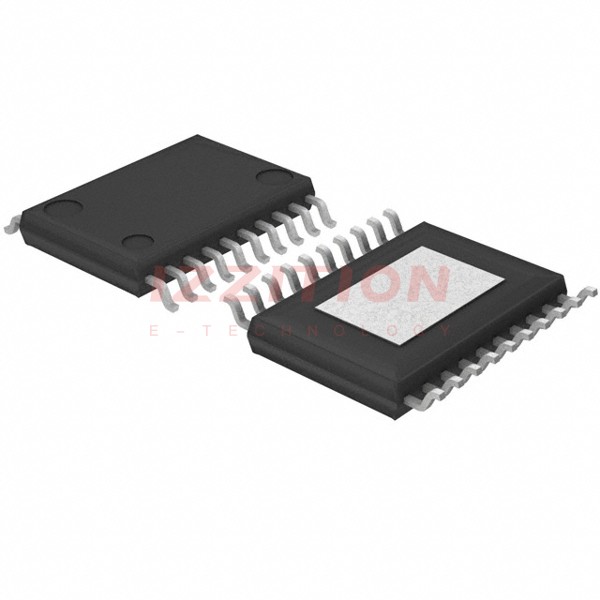

| Package / Case | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad | 16-TSSOP (0.173", 4.40mm Width) Exposed Pad | 20-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Supplier Device Package | 20-HTSSOP | 20-HTSSOP | 20-HTSSOP | 16-TSSOP | 20-HTSSOP |
