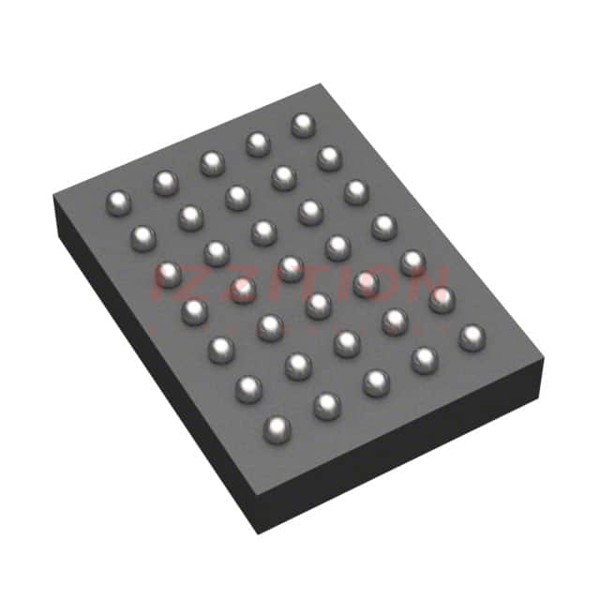

| Part Number | RAA207703GBM#HC0 | RAA207704GBM#HC0 | RAA207705GBM#HC0 | RAA207700GBM#HC0 | RAA207701GBM#HC0 | RAA207702GBM#HC0 | RAA207703AGBM#HC0 |
|---|---|---|---|---|---|---|---|
| Manufacturer | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc | Renesas Electronics America Inc |
| Product Status | Active | Active | Active | Obsolete | Obsolete | Obsolete | Active |
| Function | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | Step-Down | - |
| Output Configuration | Positive | Positive | Positive | Positive | Positive | Positive | - |
| Topology | Buck | Buck | Buck | Buck | Buck | Buck | - |
| Output Type | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | Adjustable | - |
| Number of Outputs | 1 | 1 | 1 | 1 | 1 | 1 | - |
| Voltage - Input (Min) | 3V | 3V | 3V | 3V | 3V | 3V | - |
| Voltage - Input (Max) | 16V | 16V | 16V | 16V | 16V | 16V | - |
| Voltage - Output (Min/Fixed) | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | 0.8V | - |
| Voltage - Output (Max) | 5V | 5V | 5V | 5V | 5V | 5V | - |
| Current - Output | 15A | 10A | 5A | 15A | 10A | 5A | - |
| Frequency - Switching | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | Up to 2MHz | - |
| Synchronous Rectifier | Yes | Yes | Yes | Yes | Yes | Yes | - |
| Operating Temperature | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | -40°C ~ 125°C (TJ) | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount | - |
| Package / Case | 35-WFBGA, CSPBGA | 30-WFBGA, CSPBGA | 20-WFBGA, CSPBGA | 35-WFBGA, CSPBGA | 30-WFBGA, CSPBGA | 20-WFBGA, CSPBGA | - |
| Supplier Device Package | 35-CSP (2.67x3.87) | 30-CSP (2.67x3.37) | 20-CSP (2.67x2.37) | 35-CSP (2.67x3.87) | 30-CSP (2.67x3.37) | 20-CSP (2.67x2.37) | - |
